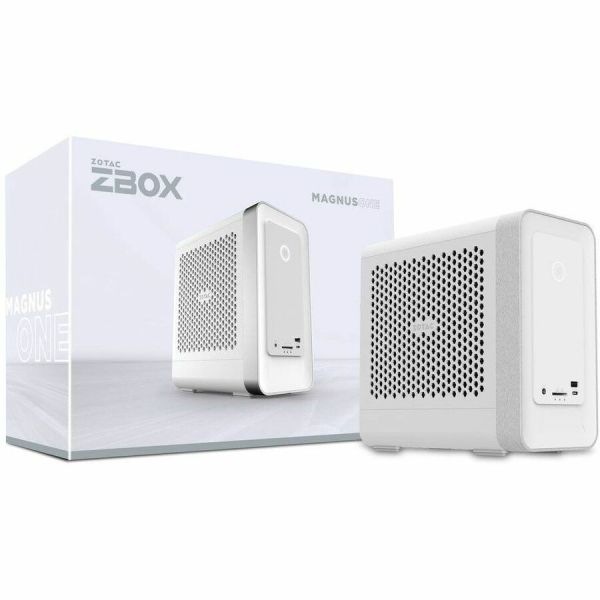

Zotac ZBOX MAGNUS ONE ERP74070W Gaming Barebone System

Marketing Information

The all-new MAGNUS ONE White Edition retains the 8.3 liter chassis of its predecessor, but the internals have been thoroughly upgraded with cutting-edge hardware, including a 13th gen Intel® Core™ i7 processor for faster processing, a ZOTAC GAMING GeForce RTX™ 4070 graphics card for high-fidelity ray-traced graphics and AI-accelerated features such as DLSS3, and other upgrades such as a UHS-II card reader for faster file transfers from SD cards. Pair those with upgradable memory and storage and a full-range of connectivity options including Killer networking, and you have a capable machine that could deliver the best experience for daily tasks, gaming, entertainment, content creation and business.

Specificat...ions
Manufacturer: ZOTAC International
Manufacturer Part Number: ZBOXERP74070WBE
Manufacturer Website Address: http://www.zotac.com
Brand Name: Zotac
Product Line: MAGNUS ONE
Product Series: E
Product Model: ERP74070W
Product Name: ZBOX MAGNUS ONE ERP74070W Gaming Barebone System
Product Type: Gaming Barebone System
Processor
Number of Processors Supported: 1
Processor Type: Core i7
Processor Generation: 13th Gen
Processor Model: i7-13700
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 2.10 GHz
Maximum Turbo Speed: 5.20 GHz
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Memory
Maximum Memory Supported: 64 GB
Memory Technology: DDR5 SDRAM
Memory Standard: DDR5-5600/PC5-44800
Storage
Supported Storage Drive Interfaces:

• Serial ATA III
• PCI Express x4

Supported Storage Drive Types:

• SSD
• HDD

Controllers
Controller Type:

• Serial ATA/600
• NVMe

Display & Graphics
Graphics Controller Model: GeForce RTX 4070
Graphics Memory Capacity: 12 GB
Graphics Memory Technology: GDDR6X
Graphics Memory Accessibility: Dedicated
Network & Communication
Ethernet Technology:

• 2.5 Gigabit Ethernet
• Gigabit Ethernet

Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
I/O Expansions
Number of Total Expansion Bays: 1
Number of M.2 Interfaces: 2
Interfaces/Ports
HDMI (Rear): Yes
Total Number of USB Ports: 8
Number of USB 3.0 Ports: 1
USB Type-C (Front): Yes
USB Type-C Detail: 1 x USB 3.0 Type-C
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
DisplayPort: Yes
Operating System
Operating System Supported: Windows 11
Power Description
Maximum Power Supply Wattage: 500 W
Physical Characteristics
Form Factor: Mini PC
Height: 249 mm
Width: 126 mm
Depth: 265.5 mm
Miscellaneous
Package Contents:

• ZBOX MAGNUS EN374070C Gaming Barebone System
• Power Cord
• 2 x Wi-Fi Antenna
• USB Flash Drive with Drivers
• Quick Install Guide

Warranty
Limited Warranty: 5 Year
