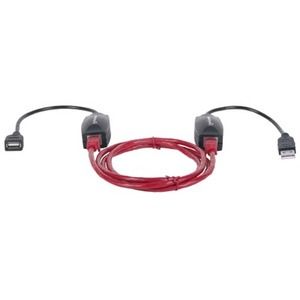

Manhattan USB Line Extender

Marketing Information

Put USB devices within convenient reach

The Manhattan USB Line Extender easily bridges the distance between a USB device and a PC host without signal loss. The local and remote units with an RJ45 network cable (not included) can connect, process and repeat USB signals. The local and receiver units can also be used separately to customize cables of any length up to 60 m (196 ft.).

Offers Flexibility for Virtually Any USB Device

Use the Manhattan USB Line Extender to overcome the USB distance restriction and expand device and PC locations and better organize productive office arrangements. The Manhattan USB Line Extender can help extend a USB keyboard and mouse during presentations, operate a barcode scanner in ret...ail point-of-purchase applications, access a printer in another room and improve other USB applications without signal loss or interference.

Easy to Install and Transport

It's small, lightweight and portable with no external power supply or drivers required, making it ideal for travel and use almost anywhere. Plug-and-play capability and Windows and Macintosh compatibility make installation easy and quick.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 179300
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: USB Line Extender
Product Type: USB Extender
Technical Information
Maximum Extended Range: 60 m
Maximum Data Transfer Rate: 1.50 MB/s
Physical Characteristics
Product Color: Black
Height: 30.5 mm
Width: 195.6 mm
Depth: 198.1 mm
Miscellaneous
Package Contents:

• 179300 USB Line Extender
• Quick install / Reference Guide

Additional Information:

• Local unit : USB A-type male and RJ45 female
• Remote unit : USB A-type female and RJ45 female
• Throughput : 12 Mbps
• Maximum length : up to 60 m (196 ft.)
• Extends the distance of barcode scanners, printers, digital cameras, keyboard/mouse extensions and other USB devices from a USB-enabled computer
• Embedded transceivers enhance signal and prevent signal loss
• Bus powered requires no external power supply; Windows and Mac compatible
• Black Color

Certifications & Standards: CE
Warranty
Limited Warranty: 3 Year
