TP-Link 550W Power Module

Marketing Information

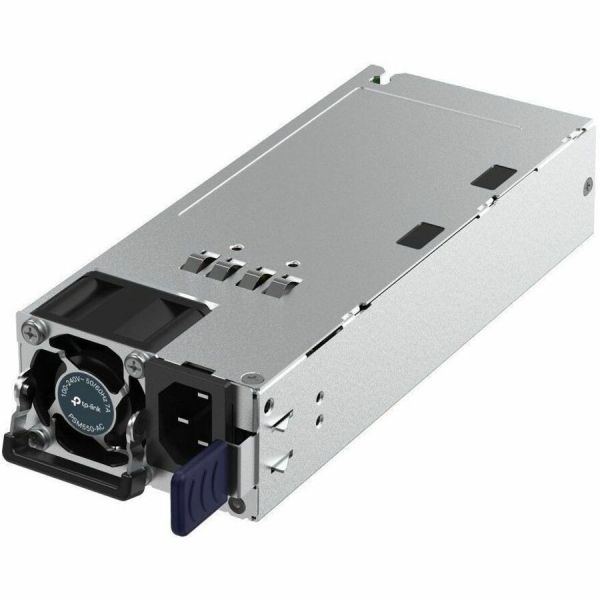

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.
Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: PSM550AC
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Name: 550W Power Module
Product ...Type: Power Module
Technical Information
Features:

• Hot-swappable
• Overvoltage Protection
• Overcurrent Protection

Application/Usage: Network Switch
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Input Frequency:

• 50 Hz
• 60 Hz

Input Current: 7 A
Output Voltage: 12 V DC
Output Current: 45 A
Output Power: 550 W
Physical Characteristics
Height: 185 mm
Width: 73.5 mm
Depth: 40 mm
Miscellaneous
Compatibility:

TP-Link Omada Switches:

• SX6632YF
• S7500-26XF6Y
