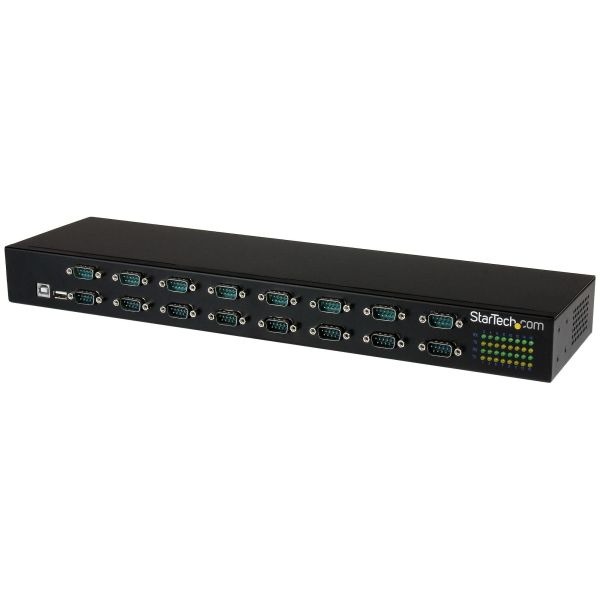

StarTech.com 16-Port USB-to-Serial Adapter Hub

Marketing Information

Here's an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

A scalable solution for changing needs

This rack-mountable USB serial hub lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.

Providing full control of your serial compone...nts from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

Built-in convenience

The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

Meets the demands of industrial environments

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F); ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ICUSB23216FD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 16-Port USB-to-Serial Adapter Hub
Packaged Quantity: 1
Product Type: Serial Hub
Technical Information
Host Interface: USB
Platform Supported:

• PC
• Linux
• Mac

Interfaces/Ports
Number of Serial Ports (External): 16
Physical Characteristics
Form Factor: External
Height: 45.7 mm
Width: 119.4 mm
Weight (Approximate): 1.60 kg
Miscellaneous
Additional Information:

OS Compatibility:

• Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
• macOS 10.6 to 10.15, 11.0, 12.0, 13.0
• Linux Kernel 3.0.x and up (LTS Versions Only)

TAA Compliant: Yes
