StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention

Marketing Information

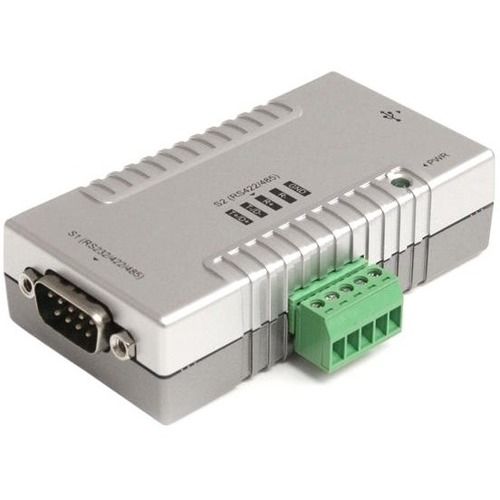

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.

For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, ...providing power to the attached serial device without requiring an external power adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ICUSB2324852
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
Packaged Quantity: 1
Product Type: Serial Adapter
Technical Information
Host Interface: USB 2.0
Data Transfer Rate: 921.6kB/s Serial Port
Platform Supported: PC
Interfaces/Ports
Number of Serial Ports (External): 1
Number of USB Ports: 1
Physical Characteristics
Form Factor: External
Height: 22.9 mm
Width: 43.2 mm
Length: 82.3 mm
Weight (Approximate): 300 g
Miscellaneous
Additional Information:

OS Compatibility:

• Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
• macOS 10.6 to 10.15, 11.0, 12.0, 13.0
• Linux Kernel 3.0.x and up  - LTS Versions only

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
