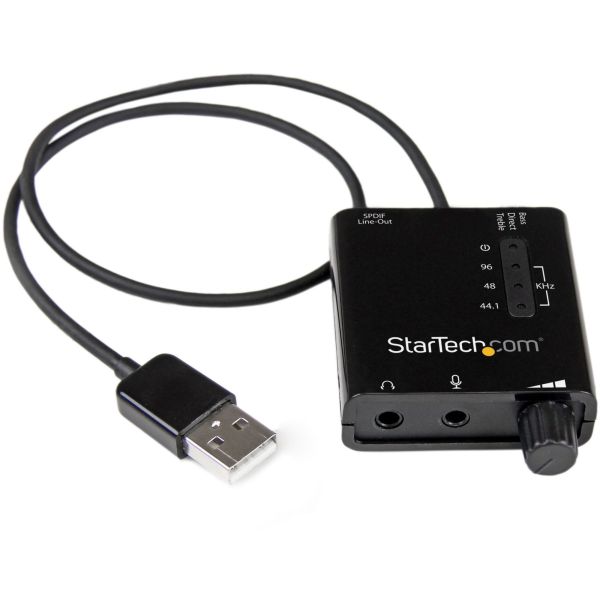

StarTech.com USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio

Marketing Information

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.

For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only).

This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Al...so a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.

Please note that the microphone input is stereo only.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ICUSBAUDIO2D
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
Packaged Quantity: 1 Each
Product Type: External Sound Box
Technical Information
Audio Processor Manufacturer: VIA
Audio Processor Model: VT1630A
Host Interface: USB 2.0
Signal to Noise Ratio (SNR): 91 dB
Maximum Playback Sampling Rate: 96 kHz
DAC Data Width: 24 bit
Sound Channels: 5.1
Platform Supported:

• PC
• Mac

Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: External
Height: 15.2 mm
Width: 45.7 mm
Thickness: 48.3 mm
Weight (Approximate): 33 g
Miscellaneous
System Requirements:

Operating System(s):

• Windows XP (32/64 bit)
• Windows Vista (32/64 bit)
• Windows 7 (32/64 bit)
• Windows 8 (32/64 bit)
• Windows Server 2008 R2
• Windows Server 2003(32/64)
• Mac OS 10.x (Tested up to 10.8)
• Linux

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
