StarTech.com Testing Device

Marketing Information

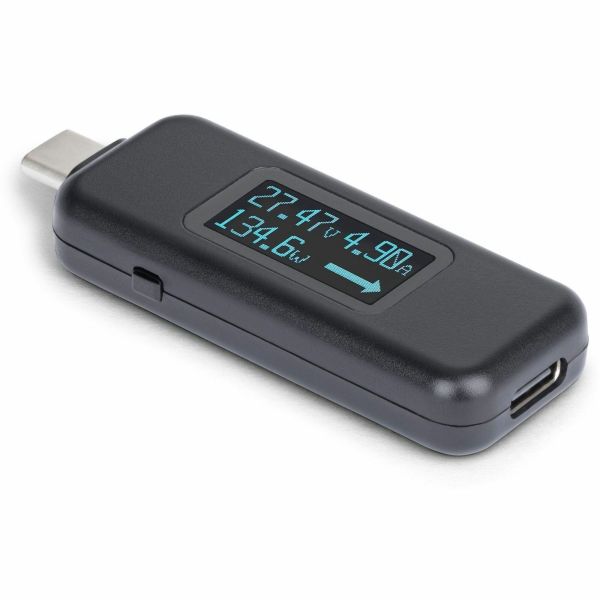

This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.

Compact Form Factor

The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro's toolkit.

Streamline Power Diagnostics

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display pr...ovides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.

Versatile USB-C Compatibility

Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: USBC-PWRTESTER
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Testing Device
Packaged Quantity: 1
Product Type: Testing Device
Technical Information
Device Function:

• Current Measurement
• Voltage Measurement
• Power Monitoring
• Wattage Monitoring

Interfaces/Ports
USB: Yes
Number of USB Ports: 1
Power Description
Input Voltage:

• 4.5 V DC
• 50 V DC

Input Current: 6.50 A
Physical Characteristics
Height: 10.2 mm
Width: 58.4 mm
Depth: 22.9 mm
Weight (Approximate): 11.3 g
Miscellaneous
Application/Usage:

• Docking Station
• Network Hub
• Charger

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
