StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA

Marketing Information

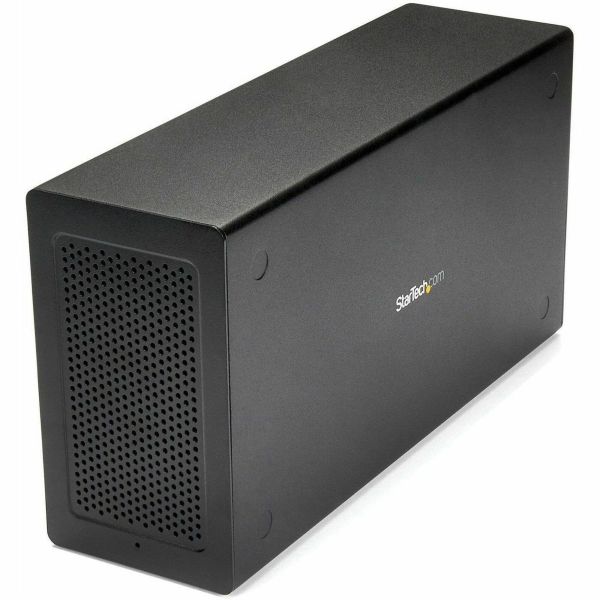

This Thunderbolt™3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection. The chassis also features a DisplayPort video output, so you can connect an additional monitor to your laptop, and supports Thunderbolt 3 daisy chaining, so you can expand your workstation even further.

Expand the capabilities of your Thunderbolt 3 computer

The Thunderbolt 3 PCIe chassis makes it easy to expand your system with the capabilities you need to work at peak productivity. You can add many types ofPCI Express cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards. And, with the speed and bandwidth suppor...t of Thunderbolt 3 and PCIe 3.0, you can enjoy many of the same port additions you would from the PCI Express expansion slots of a desktop system.

Extend your workstation

The external PCIe enclosure features a dedicated DisplayPort output that lets you add an additional display to your laptop or desktop computer. The enclosure features a secondThunderbolt 3 (USB-C) port, that you can useto connect a secondary display (a USB-C video adapter may be required). With multiple extended displays, you can work more efficiently by multitasking faster, and avoid the hassle of continually repositioning several open windows or programs.

You can also use the second Thunderbolt 3 port to connect additional Thunderbolt, USB and DisplayPort devices to your system. You can daisy chain up to six Thunderbolt 3 devices and expand your workstation to suit your specific requirements.

Increase productivity with faster speeds

Thunderbolt 3 is the fastest connection available, which means you don't have to deal with the performance bottlenecks of a slower connection, and can accomplish more in the same amount of time.

At up to 40Gbps this Thunderbolt 3 expansion chassis gives you the throughput to add displays to your laptop, access files quickly, and work without disruptions. It's easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production.

The TB31PCIEX16 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: TB31PCIEX16
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Thunderbolt 3 PCIe Expansion Chassis with DisplayPort - PCIe x16
Packaged Quantity: 1
Product Type: Expansion Chassis
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Aluminium
• Steel

Form Factor: Desktop
Height: 81.3 mm
Width: 142.2 mm
Length: 279.4 mm
Weight (Approximate): 1.63 kg
Miscellaneous
Additional Information:

OS Compatibility:

• Windows® 7, 8, 8.1, 10, 11
• macOS 10.12 - 10.15, 11.0, 12.0, 13.0

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan
TAA Compliant: Yes
