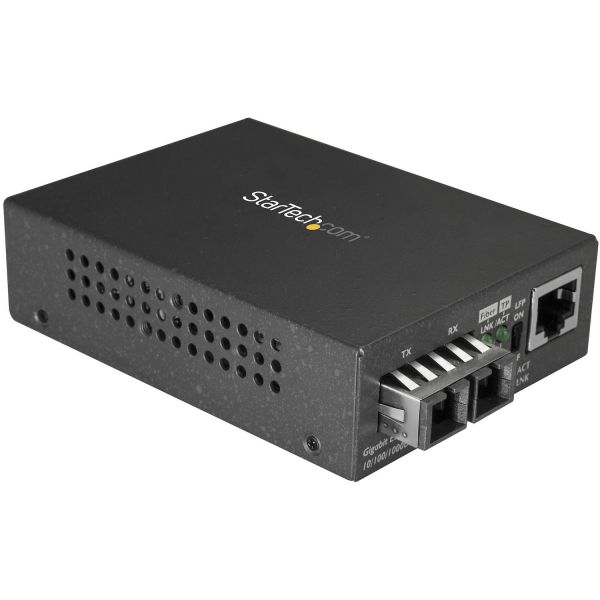

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km

Marketing Information
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MCMGBSCSM10
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
Packaged Quantity: 1 Each
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 10 km
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-LX
• 10Base-T
• 100Base-LX

Power Description
Power Source: AC Adapter
Power Consumption: 10 W
Plug/Connector Type: Type N
Physical Characteristics
Form Factor: Wall Mountable
Height: 25.4 mm
Width: 104.1 mm
Depth: 71.1 mm
Weight (Approximate): 195.6 g
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

TAA Compliant: Yes
