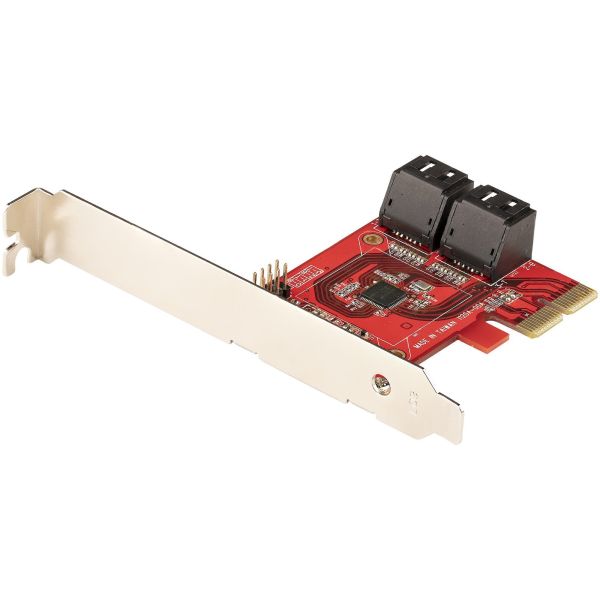

StarTech.com SATA PCIe Card, 4 Port PCIe SATA Expansion Card, 6Gbps, Stacked Connectors, Non-RAID, PCI Express to SATA Converter/Adapter

£39.23
Limited Stock: Only 0 available
StarTech.com SATA PCIe Card, 4 Port PCIe SATA Expansion Card, 6Gbps, Stacked Connectors, Non-RAID, PCI Express to SATA Converter/Adapter
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon
Ethics - Animal - Key Point StarTech.com's key animal record fact coming soon
Ethics - Human - Key Point StarTech.com's key human record fact coming soon
Ethics - Environment - Key Point StarTech.com's key environment record fact coming soon
Ethics - Integrity - Key Point StarTech.com's key integrity record fact coming soon
Ethics - Durability - Key Point StarTech.com's key durability record fact coming soon

Description

Marketing Information

This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

ASM1164 to Deliver 4-Port SATA 6Gbps Performance

Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7..., 8, 10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).

To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.

Hassle-Free Installation

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft) , RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.

4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

More from the Manufacturer


Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 4P6G-PCIE-SATA-CARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: PCIe SATA Card
Product Type: SATA Controller
Technical Information
Host Interface: PCI Express 3.0 x4
Controller Type: Serial ATA/600
RAID Supported: No
Device Supported: Server
Operating System Supported:
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Mac OS X 10.10 Yosemite
  • Mac OS X 10.11 El Capitan
  • Mac OS X 10.12 Sierra
  • Mac OS X 10.13 High Sierra
  • Mac OS X 10.14 Mojave
  • Mac OS X 10.15 Catalina
  • Mac OS X 11.0 Big Sur
  • Mac OS X 12.0 Monterey
  • Mac OS X 13.0 Ventura
  • Linux 2.6.32

Interfaces/Ports
Total Number of SATA Ports: 4
Number of SATA Ports (Internal): 4
Physical Characteristics
Height: 15.2 mm
Width: 55.9 mm
Length: 71.1 mm
Form Factor: Plug-in Card
Weight (Approximate): 75 g
Miscellaneous
Platform Supported:
  • PC
  • Mac
  • Linux
