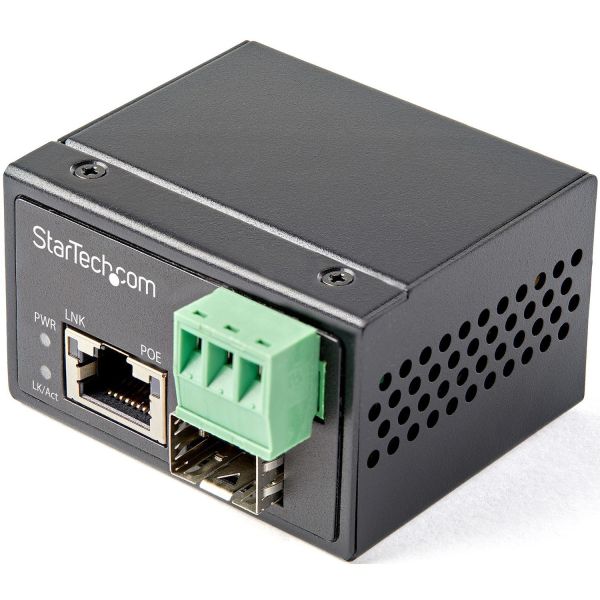

StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper Mini Size IP-30

Marketing Information

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector

It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances.

Designed for Small Spaces & Harsh Environments

At 4.5... square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.

OPERATING TEMPERATURESTORAGE TEMPERATURE

40°C to 75°C

-40°C to 85°C

104°F to 167°F104°F to 185°FUp to 30 Watts of Power for Connected Devices

30 watts of available support a wide range of devices such as:

• Surveillance Cameras
• Wireless Access Points
• Locks & Sensors
• Lighting

Open SFP Slot to Leverage Your Current Infrastructure

The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

Industrial IoT and Bringing Connectivity Outside of the Data Center

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The IMC1GSFP30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: IMC1GSFP30W
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Transceiver/Media Converter
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of PoE (RJ-45) Ports: 1
Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Fiber Mode Supported:

• Multi-mode
• Single-mode

I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-TX

Power Description
Power Source: PoE+
Power Consumption: 30 W
Plug/Connector Type:

• Terminal Block (3 Wire)
• Type N

Physical Characteristics
Form Factor:

• DIN Rail Mountable
• Wall Mountable

Height: 48.3 mm
Width: 35.6 mm
Depth: 58.4 mm
Weight (Approximate): 79.4 g
Miscellaneous
Package Contents:

• Transceiver/Media Converter
• Terminal Block to Barrel Power Connector Adapter
• Quick-Start Guide
• Mounting Hardware
• Terminal Block

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
