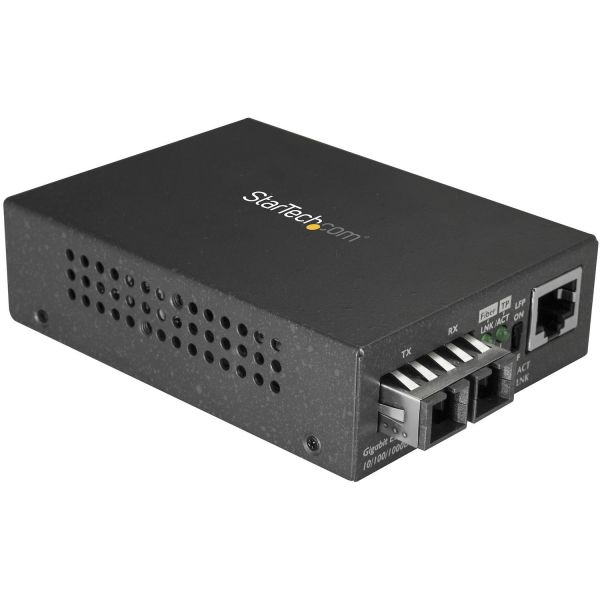

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m

Marketing Information
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber, on 1000BASE-SXnetworks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MCMGBSCMM055
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
Packaged Quantity: 1 Each
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 850 nm
Maximum Distance Supported: 550 m
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-SX
• 1000Base-TX
• 10Base-T

Power Description
Power Source: AC Adapter
Power Consumption: 10 W
Plug/Connector Type: Type N
Physical Characteristics
Form Factor: Wall Mountable
Height: 25.4 mm
Width: 96.5 mm
Depth: 71.1 mm
Weight (Approximate): 201.3 g
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

TAA Compliant: Yes
