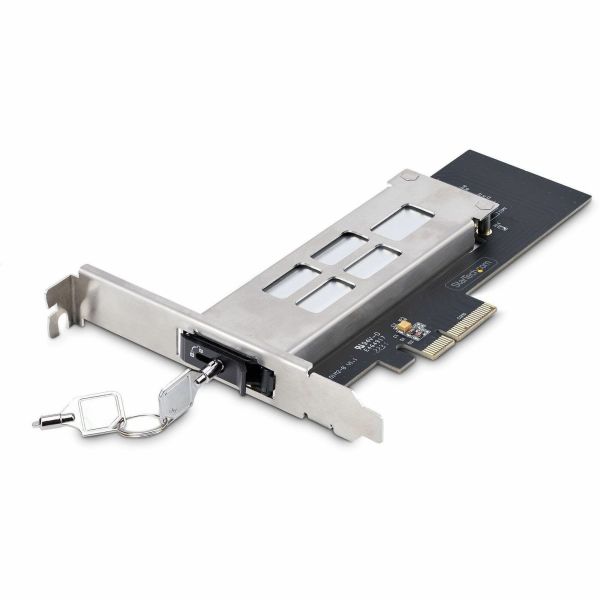

StarTech.com M.2 to PCI Express Adapter

Marketing Information

Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.

Toolless Installation

Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.

Optimal Performance

The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttli...ng. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems.

Hot-Swappable

Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) provide flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: M2REMOVABLEPCIEN1
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: M.2 to PCIe Adapter Card
Packaged Quantity: 1
Product Type: M.2 to PCI Express Adapter
Physical Characteristics
Product Color:

• Black
• Silver

Height: 19 mm
Width: 120 mm
Length: 167 mm
Weight (Approximate): 65 g
Miscellaneous
Package Contents:

• M.2 to PCIe Adapter Card
• 1 x Low-Profile Bracket
• 1 x M.2 Drive Tray
• 1 x Set of Keys
• 1 x Quick-Start Guide

Country of Origin: China
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
