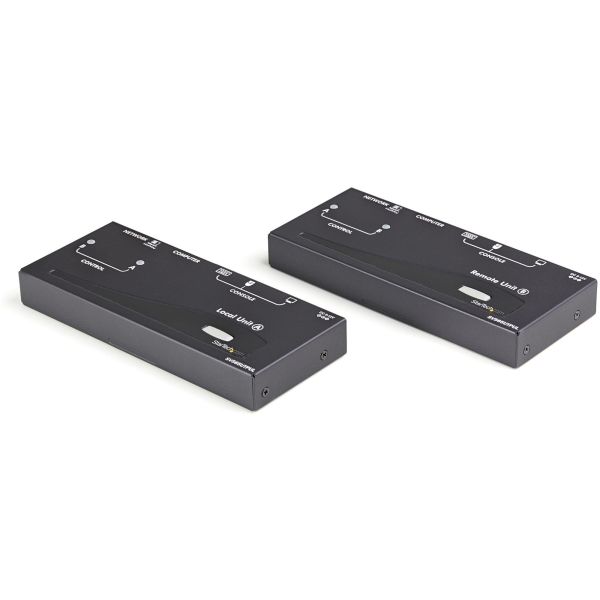

StarTech.com USB VGA KVM Console Extender over Cat5 UTP 1000 ft

Marketing Information

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.

You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

More from the Manufacturer

...follow" href="javascript:void(0)" onclick="javascript:window.open('//content.etilize.com/mini-site/en_uk/1017229503.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SV565UTPUL
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB VGA KVM Console Extender over Cat5 UTP 1000 ft
Packaged Quantity: 1
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 2
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 300 m
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of VGA Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4
Power Description
Input Voltage:

• 120 V AC
• 240 V AC

Input Voltage Range: 110V AC to 240V AC
Power Consumption: 18 W
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor:

• Rack-mountable
• Desktop

Transmitter Height: 20.32 mm
Transmitter Width: 157.48 mm
Transmitter Depth: 71.12 mm
Receiver Height: 20.32 mm
Receiver Width: 157.48 mm
Receiver Depth: 71.12 mm
Transmitter Weight (Approximate): 622 g
Receiver Weight (Approximate): 622 g
Miscellaneous
Package Contents:

• USB VGA KVM Console Extender over Cat5 UTP 1000 ft
• Power Adapter
• Cables

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
