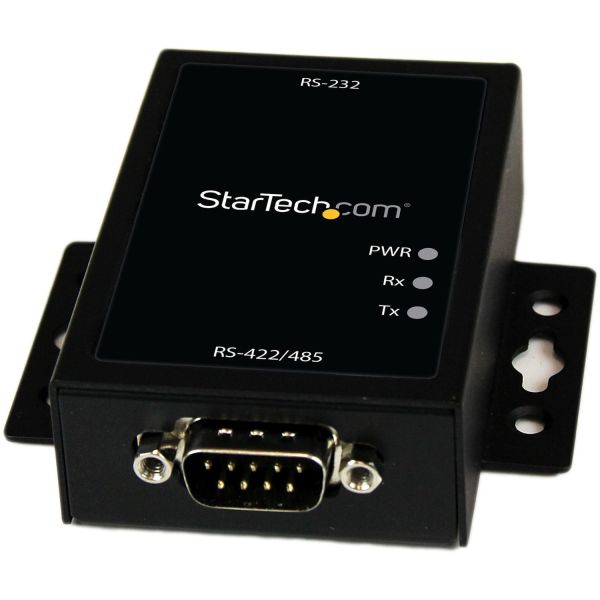

StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection

Marketing Information

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.

Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.

The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports con...nection distances of up to 4000ft (1200m).

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: IC232485S
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
Packaged Quantity: 1
Product Type: Device Server
Wireless Specifications
Wireless LAN: No
ISM Band: No
UNII Band: No
Interfaces/Ports
Network (RJ-45): No
Phone Line (RJ-11): No
Network (RJ-11): No
USB: No
Serial Port: Yes
Parallel Port: No
Centronics Port: No
PoE (RJ-45) Port: No
Number of Serial Ports: 2
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Product Color: Black
Form Factor: Wall Mountable
Height: 22.9 mm
Width: 58.4 mm
Depth: 116.8 mm
Weight (Approximate): 141.7 g
Miscellaneous
Package Contents:

• Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
• Power Adapter
• 1 x Universal Power Adapter (NA/EU/UK)
• 1 x Instruction Manual

Certifications & Standards:

• CE
• FCC

Warranty
Limited Warranty: 2 Year
