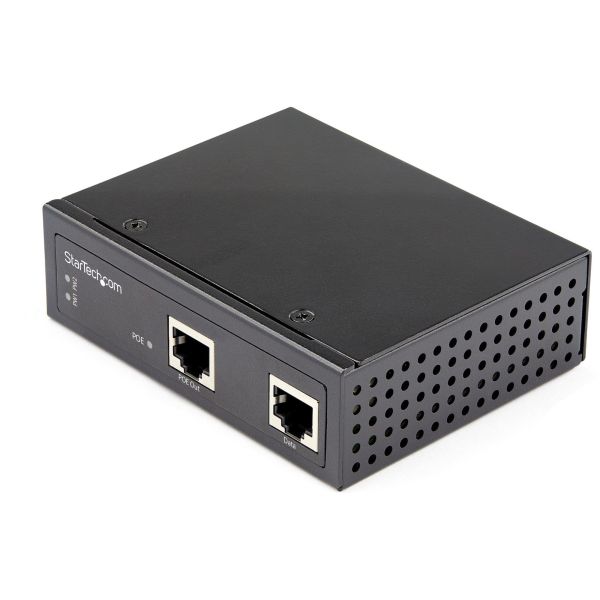

StarTech.com Industrial Gigabit PoE Injector - High Speed 90W 802.3bt PoE++ 52V-56VDC Ultra Power Over Ethernet/UPoE Injector -40C to +75C

Marketing Information
Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax... wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: POEINJ1G90W
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: POEINJ1G90W
Product Name: POEINJ1G90W PoE Injector
Product Type: PoE Injector
Technical Information
Protection Type: Surge Protection
Power Description
Input Voltage: 56 V DC
Maximum Output Power: 90 W
Interfaces/Ports
Input Ports: 1 x Gigabit Ethernet
Output Ports: 1 x PoE+
Physical Characteristics
Product Color: Black
Form Factor: DIN Rail/Wall Mountable
Height: 104.1 mm
Width: 33 mm
Length: 81.3 mm
Weight (Approximate): 174 g
Miscellaneous
Package Contents:

• POEINJ1G90W PoE Injector
• Mounting Hardware Kit
• Quick-Start Guide
• Terminal Block

Certifications & Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3at
• IEEE 802.3af
• IEEE 802.3bt
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• EN60950-1
• IP-30
• EN 60068-2-6
• EN 60068-2-27
• EN 60068-2-32

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
