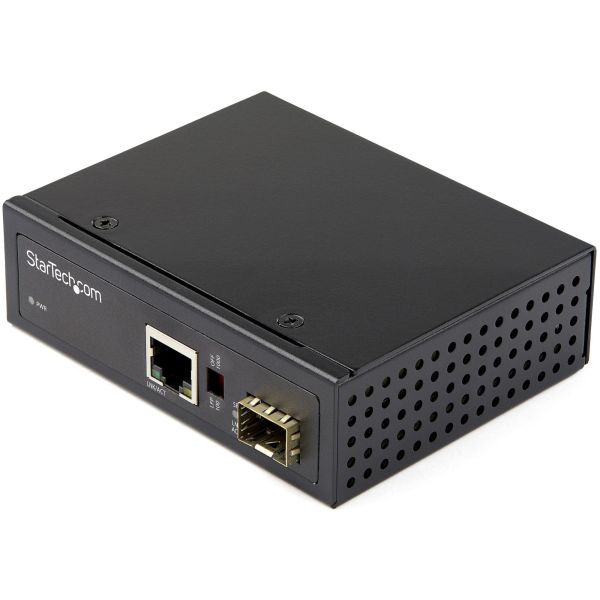

StarTech.com Transceiver/Media Converter

Marketing Information

An industrial media converter that converts fiber to copper at a network endpoint.

A Flexible Solution Covering Different Requirements

This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.

For Mission-Critical Applications

Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32

The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: IMC1GSFP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Transceiver/Media Converter
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Fiber Mode Supported:

• Multi-mode
• Single-mode

I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-X

Power Description
Power Source: Power Supply
Power Consumption: 3 W
Plug/Connector Type:

• Terminal Block (4 Wire)
• Type N

Physical Characteristics
Form Factor:

• DIN Rail Mountable
• Wall Mountable

Height: 33 mm
Width: 81.3 mm
Depth: 104.1 mm
Weight (Approximate): 144.6 g
Miscellaneous
Package Contents:

• Transceiver/Media Converter
• Mounting Hardware Kit
• Quick-Start Guide
• Terminal Block to Barrel Power Connector Adapter
• Terminal Block

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
