StarTech.com D01ML55U-FIBER-MEDIA
Maximum Distance Supported | 10 km |
---|---|
Number of LC Ports | 1 |
Fiber Mode Supported | Single-mode/Multi-mode |
LC Port Type | Duplex |
Product Type | Transceiver/Media Converter |
Power Source | USB |
Form Factor | Compact |
Network Technology | 1000Base-T/1000Base-LX |
Brand Name | StarTech.com |
Ethernet Technology | Gigabit Ethernet |
USB | Yes |
Number of Network (RJ-45) Ports | 1 |
Network (RJ-45) | Yes |
Media Type Supported | Twisted Pair/Optical Fiber |
Total Number of Ports | 2 |
TAA Compliant | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Ethics - Environment | Rating Coming Soon |
Ethics - Animal | Rating Coming Soon |
Ethics - Human | Rating Coming Soon |
Ethics - Integrity | Rating Coming Soon |
Ethics - Durability | Rating Coming Soon |
Ethics - Alert | Rating Coming Soon |
Description

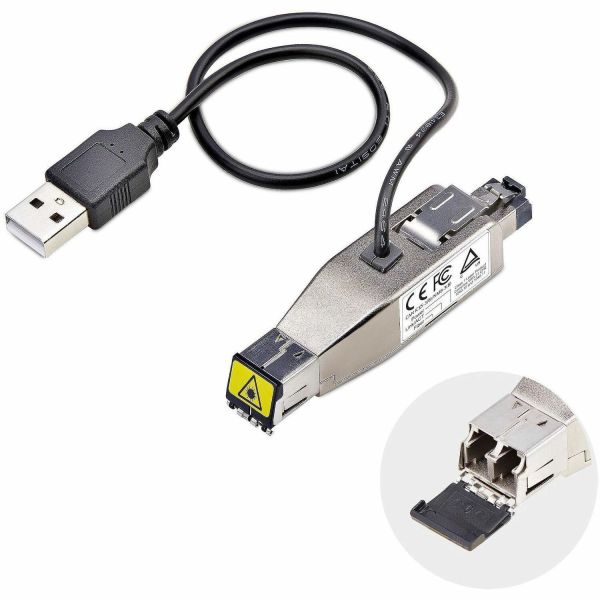

This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is designed with a convenient built-in USB cable for power, making it a perfect choice when external power options are unavailable.
Simplified Installation
The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features
The LC slot i...s compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility
This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2Ã-0.8Ã-0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: D01ML55U-FIBER-MEDIA
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: D01ML55U-FIBER-MEDIA
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
USB: Yes
Number of LC Ports: 1
LC Port Type: Duplex
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported:
- Single-mode
- Multi-mode
Fiber Optic Cable Wavelength: 1.31 µm
Maximum Distance Supported: 10 km
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-LX
Power Description
Power Source: USB
Power Consumption: 2.50 W
Physical Characteristics
Form Factor: Compact
Height: 17.8 mm
Width: 81.3 mm
Depth: 20.3 mm
Weight (Approximate): 48.2 g
Miscellaneous
Package Contents:
- D01ML55U-FIBER-MEDIA
- 1 x Quick-Start Guide
Application/Usage:
- Network
- Industrial
- Data Center
Certifications & Standards:
- IEEE 802.3ab
- IEEE 802.3z
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
