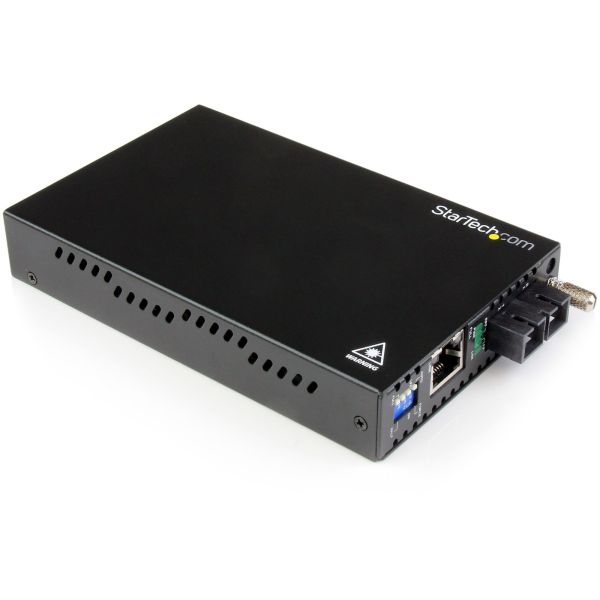

StarTech.com Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps

Marketing Information

The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles).

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ET91000SM402
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps
Packaged Quantity: 1 Each
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 40 km
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-SX/LX

Power Description
Power Source: AC Adapter
Input Voltage: 12 V DC
Power Consumption: 4 W
Plug/Connector Type: Type M
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor:

• Rack-mountable
• Desktop

Height: 20.3 mm
Width: 94 mm
Depth: 160 mm
Weight (Approximate): 601 g
Miscellaneous
Package Contents:

• Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps
• 1 x Universal Power Adapter
• 1 x Instruction Manual

Compatibility:

ETCHS2U Rackmount Chassis

Certifications & Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• FC
• FCC

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes
