StarTech.com KVM Console/Extender

Marketing Information

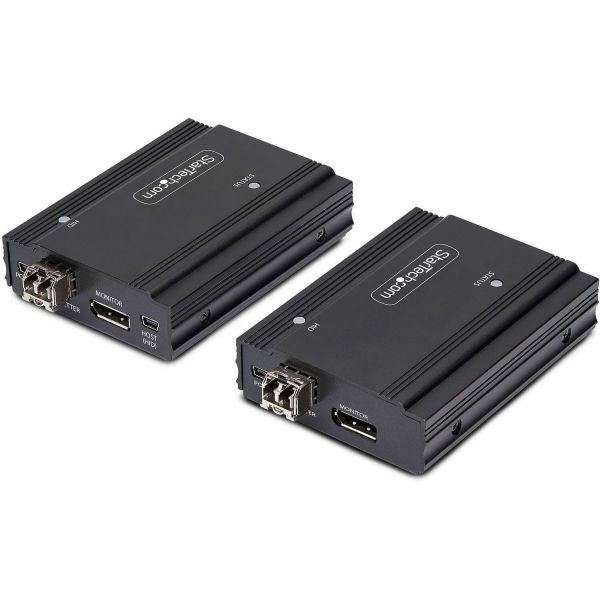

The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).

4K 60Hz DisplayPort Video

The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.

Universal Compatibility

The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. ...The SFP+ slots support both single and multi-mode MSA-compliant modules.

Built-In USB Hub

Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.

Durable Design

The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: FD121-KVM-EXTENDER
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: KVM Console/Extender
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Video
Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Host Interface: DisplayPort
USB: Yes
DisplayPort: Yes
Number of USB Ports: 6
Power Description
Input Voltage:

• 100 V AC
• 240 V AC

Input Voltage Range: 100 - 240 AC
Physical Characteristics
Color Family: Black
Product Color: Black
Miscellaneous
Package Contents:

• 1 x Transmitter (Local Unit)
• 1 x Receiver (Remote Unit)
• 2 x 10G SFP+ Modules (Pre-installed)
• 2 x Universal Power Adapter (NA/EU/UK/ANZ)
• 3 x USB-A to USB Mini-B Cables
• 1 x Quick-Start Guide

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
