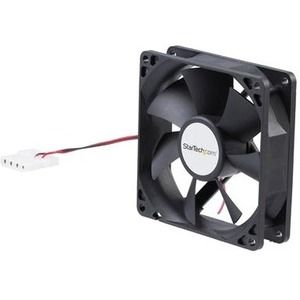

StarTech.com 92mm Dual Ball Bearing Computer Case Fan

Marketing Information

This 9.2cm x 9.2cm x 2.5cm (3 5/8" x 3 5/8" x 1") Dual Ball Bearing PC case fan is an add-in cooling fan designed to fit most computers.

The PC Case fan can be used to circulate cool air into the case or exhaust warm air out, preventing problems due to overheating components.

A quiet running brushless ball bearing DC motor coupled with a high efficiency blade design is capable of moving 39.35 CFM (cubic feet per minute) of air.

Power is supplied to the fan using a standard LP4 (hard drive power connector) pass through plug.

More from the Manufacturer

...l','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: FANBOX92
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 92mm Dual Ball Bearing Computer Case Fan
Packaged Quantity: 1 Each
Product Type: Cooling Fan
Fan Information
Number of Fans: 1
Fan Bearing Type: Ball Bearing
Fan Speed (Max): 2200 rpm
Maximum Airflow: 66.86m³/h
Airflow Details:

1 x 39.35CFM

Noise Levels (A-Weighted): 26 dB(A)
Fan Life: 5.1 Year
Interfaces/Ports
Connectors:

• 4-pin LP4 Male
• 4-pin LP4 Female

Power Description
Input Voltage: 12 V DC
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Plastic
Maximum Fan Diameter: 92 mm
Fan Height: 92 mm
Fan Width: 92 mm
Fan Depth: 25 mm
Weight (Approximate): 82 g
Miscellaneous
Package Contents:

• 92mm Dual Ball Bearing Computer Case Fan
• 4 x Mounting Screws

Additional Information:

• Color: Black
• Rated power: 2.62 w
• Ball bearings in the motor provide dependable operation and a long service life
• High efficiency fan-blade design is capable of moving 32 CFM

Application/Usage: Case
Certifications & Standards:

• ISO 9001

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 2 Year
