StarTech.com 8-Port Rackmount KVM Console with 17" Display

Marketing Information

Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

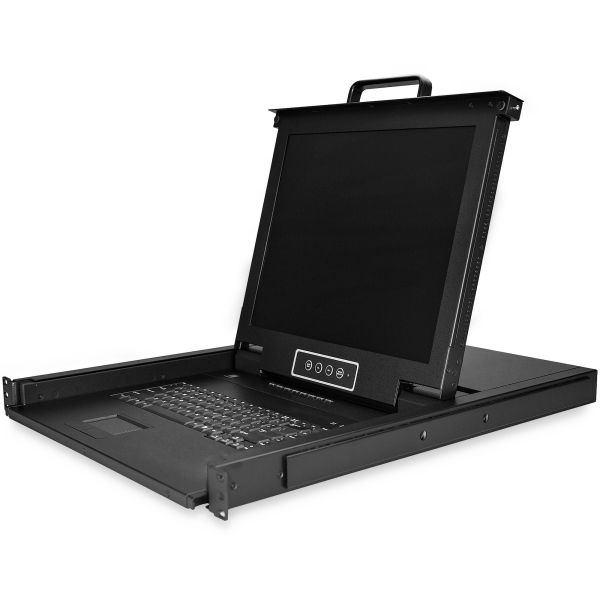

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This 8-port KVM console comes with everything you need to set up right out of the box:

• 8 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

With direct access to eight systems or servers, the 8-port KVM module gives you the fle...xibility you need to easily integrate the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: RKCONS1708K
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 8-Port Rackmount KVM Console with 17" Display
Packaged Quantity: 1
Product Type: LCD Rack Console
Technical Information
KVM Switch: Yes
Number of Computers Supported: 8
Display & Graphics
Screen Size: 43.2 cm (17")
Display Screen Type: LCD
Screen Mode: SXGA
Screen Resolution: 1280 x 1024
Input Devices
Keyboard: Yes
Pointing Device Type: TouchPad
Interfaces/Ports
PS/2 Port: Yes
USB: Yes
VGA: Yes
Proprietary Interface: Yes
Number of PS/2 Ports: 2
Number of USB Ports: 2
Number of VGA Ports: 1
Number of Proprietary Ports: 8
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range: 100V AC to 240V AC
Power Consumption: 13 W
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Steel
Rack Height: 1U
Height: 43.2 mm
Width: 447 mm
Depth: 525.8 mm
Weight (Approximate): 13.34 kg
Miscellaneous
Package Contents:

• 8-Port Rackmount KVM Console with 17" Display
• 8 x KVM Cables
• 8 x M5 Cage Nuts
• 8 x M5 Screws
• 5 x Power Cords (NA, JP, UK, EU, ANZ)
• 2 x Mounting Rails
• 1 x Quick-Start Guide

Platform Supported: PC
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: China
Warranty
Limited Warranty: 2 Year
