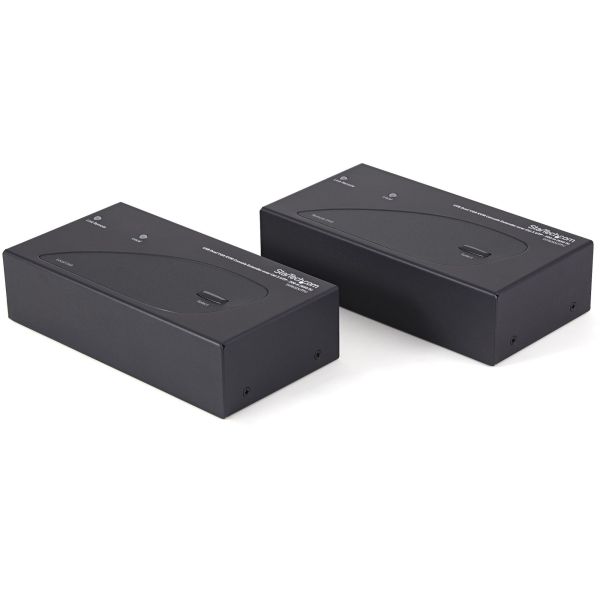

StarTech.com USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m

Marketing Information

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you t...he ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SV565DUTPU
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m
Packaged Quantity: 1
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 2
Number of Local Users Supported: 2
Maximum Operating Distance: 198.12 m
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of VGA Ports: 8
Number of Network (RJ-45) Ports: 4
Number of USB Ports: 4
Power Description
Input Voltage:

• 120 V AC
• 240 V AC

Input Voltage Range: 110V AC to 240V AC
Power Consumption: 5.40 W
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Desktop
Transmitter Height: 40.64 mm
Transmitter Width: 78.74 mm
Transmitter Depth: 154.94 mm
Receiver Height: 40.64 mm
Receiver Width: 78.74 mm
Receiver Depth: 154.94 mm
Transmitter Weight (Approximate): 535 g
Receiver Weight (Approximate): 535 g
Miscellaneous
Package Contents:

• USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m
• 2 x 6 ft 2-in-1 USB VGA KVM Cables
• 2 x Packs Rubber Feet
• 1 x Power Adapter
• 1 x Instruction Manual

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
