StarTech.com 4-Port Serial PCIe Card, Quad-Port RS232/RS422/RS485 Card, 16C1050 UART, ESD Protection, Windows/Linux, TAA-Compliant

£158.86
Limited Stock: Only 0 available
StarTech.com 4-Port Serial PCIe Card, Quad-Port RS232/RS422/RS485 Card, 16C1050 UART, ESD Protection, Windows/Linux, TAA-Compliant
Category: Serial|Parallel Adapters
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon
Ethics - Animal - Key Point StarTech.com's key animal record fact coming soon
Ethics - Human - Key Point StarTech.com's key human record fact coming soon
Ethics - Environment - Key Point StarTech.com's key environment record fact coming soon
Ethics - Integrity - Key Point StarTech.com's key integrity record fact coming soon
Ethics - Durability - Key Point StarTech.com's key durability record fact coming soon

Description

Marketing Information

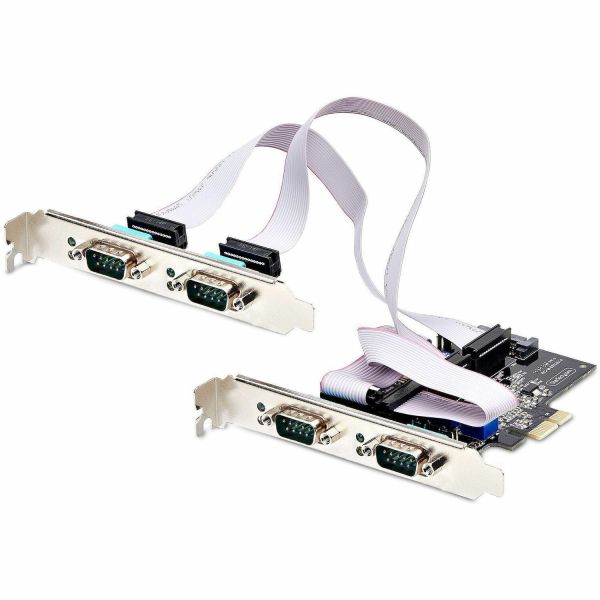

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 4-Port Serial PCI Express Card. The four DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.

Per-Port Serial Configuration

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.

Configurable External SATA Power

The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpe...rs, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.

Legacy Connectivity

This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 4-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes)


Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PS74ADFSERIALCARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4-Port Serial Card
Packaged Quantity: 1
Product Type: Serial Adapter
Technical Information
Host Interface: PCI Express 2.0 x1
UART Type:
  • 16C450
  • 16C550
  • 16C650
  • 16C750
  • 16C950

Platform Supported:
  • PC
  • Linux

Interfaces/Ports
Number of Serial Ports (External): 4
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 15.2 mm
Width: 109.2 mm
Depth: 121.9 mm
Weight (Approximate): 60 g
Miscellaneous
Package Contents:
  • 4-Port Serial Card
  • 4 x Low-Profile Bracket
  • 3 x Ribbon Cable
  • 1 x Quick-Start Guide

Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
