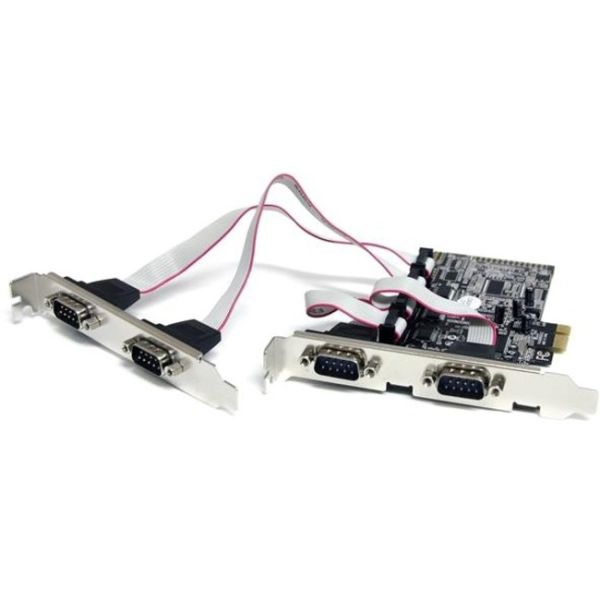

StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART

Marketing Information

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.

Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.

The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

More from the Manufacturer

...l="nofollow" href="javascript:void(0)" onclick="javascript:window.open('//content.etilize.com/mini-site/en_uk/1020121166.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX4S553
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
Packaged Quantity: 1
Product Type: Serial Adapter
Technical Information
Host Interface: PCI Express x1
Data Transfer Rate: 128kB/s
UART Type:

• 16550
• 16C450

Platform Supported: PC
Interfaces/Ports
Number of Serial Ports (External): 4
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Dual-profile
Height: 17.8 mm
Width: 129.5 mm
Length: 119.4 mm
Weight (Approximate): 73.7 g
Miscellaneous
Additional Information:

Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)

Windows Server® 2012, 2008 R2, 2003

Mac OS® 10.10

Linux

Warranty
Limited Warranty: 2 Year
