StarTech.com 4 Drive Trayless 3.5in SATA/SAS Mobile Rack

Marketing Information

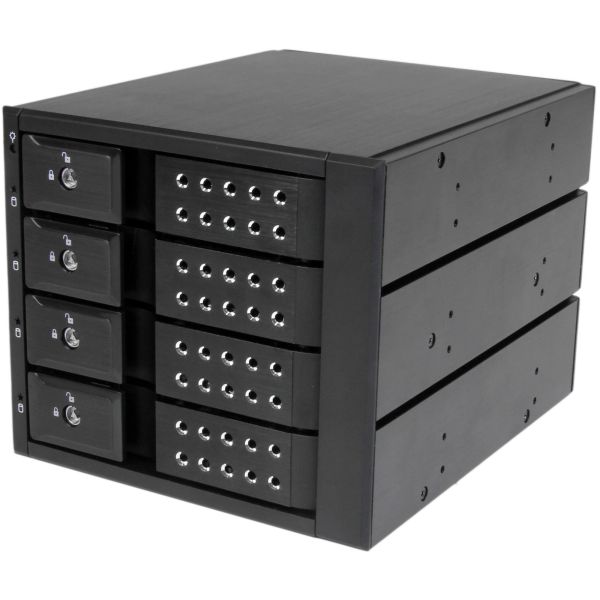

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD).

For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.

The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical supp...ort.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: HSB4SATSASBA
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
Packaged Quantity: 1
Product Type: Drive Enclosure
Technical Information
Number of Hard Drives Supported: 4
Number of Hard Drives Installed: No
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface:

• SATA/600
• Serial Attached SCSI (SAS)

Host Interface:

• 6Gb/s SAS
• Serial ATA/600

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Aluminium
Cooling Fan: Yes
Form Factor: Internal
Compatible Drive Bay Width: 5.25"
Height: 127 mm
Width: 144.8 mm
Depth: 198.1 mm
Weight (Approximate): 1.27 kg
