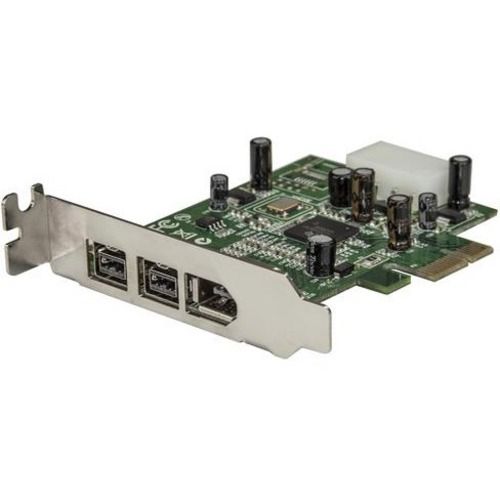

StarTech.com 3 Port 2b 1a LP 1394 PCI Express FireWire Card

Marketing Information

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.

The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).

The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.

...k-spex-minisite" rel="nofollow" href="javascript:void(0)" onclick="javascript:window.open('//content.etilize.com/mini-site/en_uk/1015480077.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX1394B3LP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
Product Type: FireWire Adapter
Technical Information
Host Interface: PCI
Interfaces/Ports
Total Number of FireWire/i.LINK Ports: 3
Number of FireWire/i.LINK 400 Ports: 1
Number of FireWire/i.LINK 800 Ports: 2
Software
Operating System Supported:

• Windows 2000
• Windows XP
• Windows Vista
• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Windows Server 2003
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• Mac OS X 10.6 Snow Leopard
• Mac OS X 10.8 Mountain Lion
• Mac OS X 10.10 Yosemite
• Mac OS X 10.11 El Capitan
• Mac OS X 10.12 Sierra
• Mac OS X 10.13 High Sierra
• Mac OS X 10.14 Mojave
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura
• Linux 3.5.x

Physical Characteristics
Form Factor: Plug-in Card
Height: 20.3 mm
Width: 58.4 mm
Length: 83.8 mm
Weight (Approximate): 42.5 g
Miscellaneous
Package Contents:

• 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
• 1 x FireWire Cable
• 1 x Full Profile Bracket
• 1 x Software CD
• 1 x Instruction Manual

Platform Supported:

• PC
• Mac
• Linux

TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
