StarTech.com 2S1P PCI Express Serial Parallel Combo Card

Marketing Information

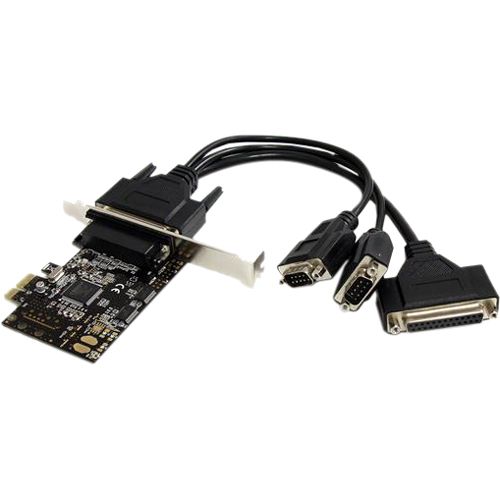

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

The card also features a native single-chip design that provides ...improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.

This product is a replacement for our PEX2S1P552B card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX2S1P553B
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2S1P PCI Express Serial Parallel Combo Card
Packaged Quantity: 1
Product Type: Serial/Parallel Combo Adapter
Technical Information
Host Interface: PCI Express x1
Data Transfer Rate:

• 250kB/s Serial Port
• 1.5MB/s Parallel Port

UART Type:

• 16C450
• 16C550

Parallel Port Modes:

• SPP
• EPP
• ECP

Platform Supported:

• PC
• Mac

Interfaces/Ports
Number of Parallel Ports (External): 1
Number of Serial Ports (External): 2
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 78.7 mm
Width: 22.9 mm
Length: 94 mm
Weight (Approximate): 224 g
Miscellaneous
Package Contents:

• 2S1P PCI Express Serial Parallel Combo Card
• 1 x DB9 Breakout Cable
• 1 x Full Profile Bracket
• 1 x Driver CD
• 1 x Instruction Manual

TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
