StarTech.com 2-Port USB-C Hub with Gb Ethernet and RS232 FTDI Serial, Attached USB-C to USB-A Dongle, 100W PD Pass-Through, 2x USB-A 5Gbps

Marketing Information

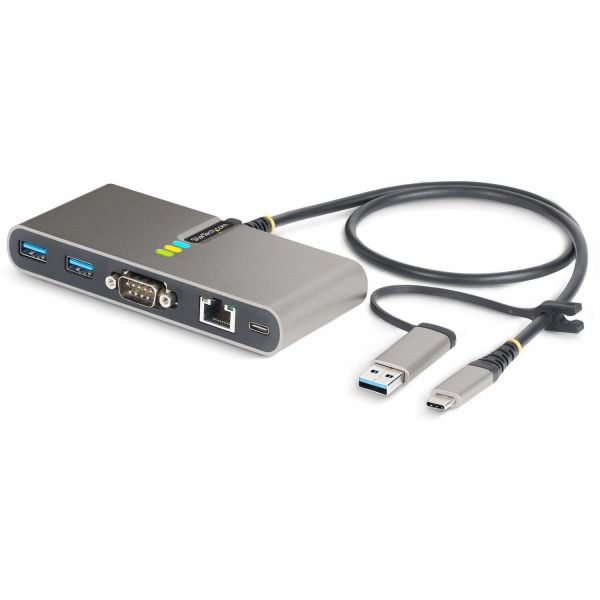

This USB Type-C Hub with RS-232 Serial, Gigabit Ethernet, and 100W USB-C Power Delivery Pass-Through adds two USB 3.2 Gen 1 (5Gbps) Type-A ports to a USB enabled computer. The attached 2ft (60cm) USB-C host cable includes a tethered USB-C to USB-A adapter that enables the USB Hub to easily connect to both USB-A and USB-C host computers.

RS-232 Serial

The USB Hub adds an RS-232 serial DB/DE-9M (male) connector to a desktop or laptop. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

Gigabit Ethernet

The USB hub features a Gigabit Ethernet Network Interface Controller (NIC). The Et...hernet adapter is compatible with the IEEE 802.3u/ab standards and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances laptop network reliability, security, and performance, by utilizing wired 10/100/1000Mbps Ethernet.

USB Power Delivery Pass-Through

This USB hub features 100W USB Power Delivery 3.0 pass-through (85W laptop charging). Connect a power source to the USB-C PD pass-through port to power the connected host device. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).

The USB hub features Overcurrent Protection (OCP) for added protection to the USB hub and any connected devices. OCP prevents faulty USB peripherals from drawing more power than is safely allocated.

Plug and Play

This device is compatible with most major operating systems, including Windows, macOS, and Linux. The Hub is automatically detected, configured, and installed upon connection to a host computer.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• USB Event Monitoring Utility: Track and log connected USB devices.
• MAC Address Pass-Through Utility: Improve network security.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 5G2A1SGBB-USB-C-HUB
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB Hub
Packaged Quantity: 1
Product Type: USB Hub
Technical Information
Host Interface:

• USB 3.2 (Gen 1) Type C
• USB 3.2 (Gen 1) Type A

Media & Performance
Data Transfer Rate: 640 MB/s
Interfaces/Ports
USB Version: 3.2 Gen 1
Total Number of USB Ports: 3
Number of Network (RJ-45) Ports: 1
USB Connector Type:

• Type-C
• Type-A

Software
Operating System Supported:

• Windows 10
• Windows 11
• Windows 7
• Windows 8
• Windows Server 2003
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2012 R2
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• Mac OS X 10.6 Snow Leopard
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura
• Windows XP
• Windows 2000
• Windows Vista
• macOS 14
• Linux 3.0.x
• Windows 98SE
• Windows CE 4.2
• Windows XP Embedded

Physical Characteristics
Color Family: Grey
Product Color: Space Gray
Form Factor: Portable
Height: 17.8 mm
Width: 127 mm
Length: 55.9 mm
Weight (Approximate): 104.9 g
Miscellaneous
Package Contents:

• USB Hub
• 1 x Quick-Start Guide

Application/Usage:

• Desktop
• Notebook

Platform Supported:

• PC
• Mac

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
