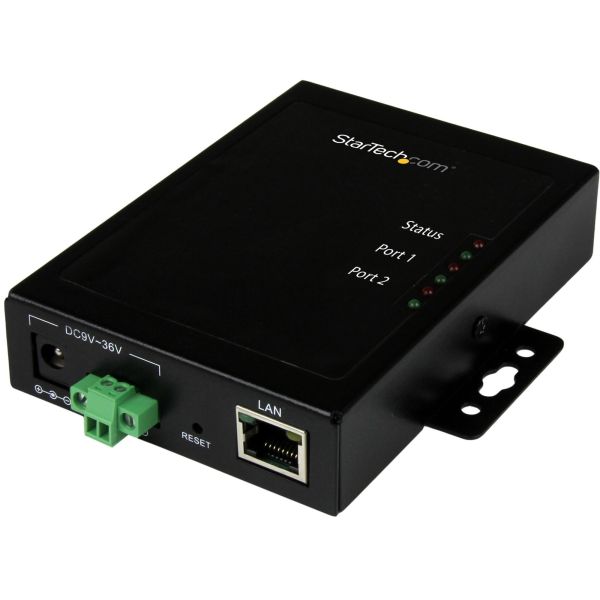

StarTech.com 2 Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - Serial Device Server

Marketing Information

This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it's perfect for factory and industrial settings.

Flexible installation, in a range of environments

If you're looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.

Plus, it features two integrated mounting brackets, so you can moun...t the device server to a surface or a wall as needed, for out-of-the-way installations.

Backup power keeps your devices connected

With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.

Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.

Completely customizable

This highly customizable device server is easy to configure to suit your application. For easy setup, Windows® users can use the provided Virtual COM port software, or the versatile Web-based interface.

The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux®). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.

The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: NETRS2322P
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2-Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable
Packaged Quantity: 1
Product Type: Device Server
Media & Performance
Media Type Supported:

• Coaxial
• Twisted Pair

Wireless Specifications
Wireless LAN: No
Network & Communication
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Interfaces/Ports
Network (RJ-45): Yes
Phone Line (RJ-11): No
Network (RJ-11): No
Serial Port: Yes
Parallel Port: No
Centronics Port: No
PoE (RJ-45) Port: No
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 2
Power Description
Input Voltage: 12 V DC
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Wall Mountable
Height: 22.9 mm
Width: 81.3 mm
Depth: 111.8 mm
Weight (Approximate): 320.3 g
Miscellaneous
Package Contents:

• 2-Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable
• 1 x Terminal bBlock (2-wire)
• 1 x Universal Power Adapter (NA/EU/UK/AU)
• 1 x Software CD
• 1 x Quick Start Guide

Compatibility:

• Virtual COM software - Windows® Only:
• Windows Vista, 7, 8, 8.1, 10
• Windows Server® 2008 R2, 2012, 2016, 2019

• Note: The device server's hardware is compatible with Mac OS and Linux®; however, the provided Virtual COM software is not compatible with these operating systems.
• When used with a Mac or Linux operating system, the device server can only be configured using the Web-GUI.

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
