StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART

Marketing Information

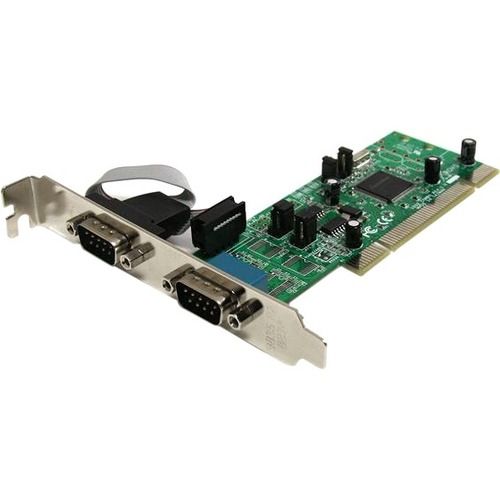

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS4...85 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PCI2S4851050
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
Packaged Quantity: 1
Product Type: Serial Adapter
Technical Information
Host Interface: Universal PCI
Data Transfer Rate: 128kB/s
UART Type: 161050
Platform Supported: PC
Interfaces/Ports
Number of Serial Ports (External): 2
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Dual-profile
Height: 45.7 mm
Width: 15.2 mm
Length: 119.9 mm
Weight (Approximate): 56.7 g
Miscellaneous
Package Contents:

• 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
• Standard and Low Profile/half-height Brackets

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
