StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16550 UART - Windows and Linux

£32.91
Limited Stock: Only 0 available
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16550 UART - Windows and Linux
Category: Serial|Parallel Adapters
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon
Ethics - Animal - Key Point StarTech.com's key animal record fact coming soon
Ethics - Human - Key Point StarTech.com's key human record fact coming soon
Ethics - Environment - Key Point StarTech.com's key environment record fact coming soon
Ethics - Integrity - Key Point StarTech.com's key integrity record fact coming soon
Ethics - Durability - Key Point StarTech.com's key durability record fact coming soon

Description

Marketing Information

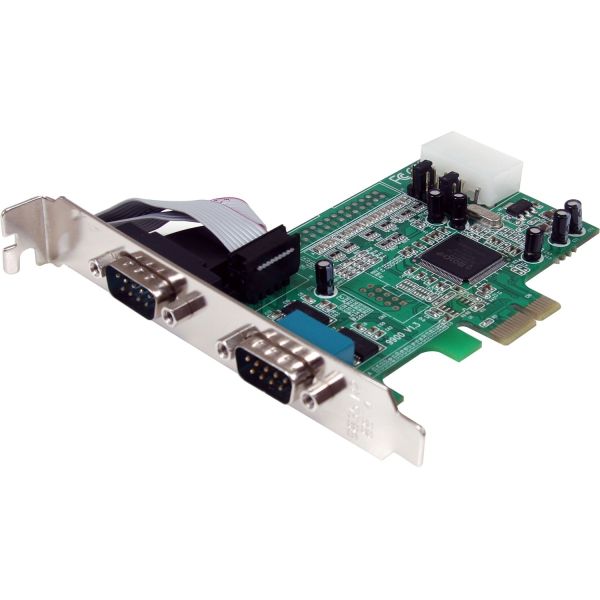

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.

The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.

Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.

This product... is a replacement for our PEX2S552 card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer


Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX2S553
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: PEX2S553
Product Name: 2 Port PCIe Serial Adapter Card with 16550
Product Type: Serial Adapter
Technical Information
Host Interface: PCI Express x1
Data Transfer Rate: 460.8kB/s
UART Type: 16550
Platform Supported:
  • PC
  • Mac
  • Linux

Interfaces/Ports
Number of Serial Ports (External): 2
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Half-height/Low-profile
Height: 20.3 mm
Width: 119.4 mm
Length: 104.1 mm
Weight (Approximate): 62.4 g
Miscellaneous
Package Contents:
  • 2 Port PCI Express RS232 Serial Adapter Card
  • Standard and Low profile/half-height Bracket

Additional Information:
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.

OS Compatibility:

  • Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS X® 10.4 to 10.10
  • Linux kernel 2.6.x to 4.11.x LTS Versions only

Warranty
Limited Warranty: 2 Year
