StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power - 5Gbps

Marketing Information

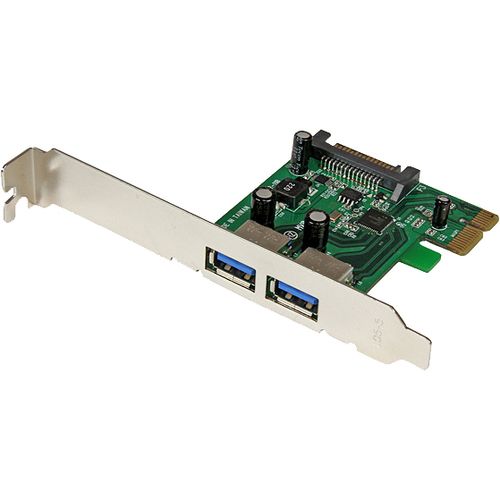

The PEXUSB3S24 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0).

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasin...g transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEXUSB3S24
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power
Packaged Quantity: 1
Product Type: USB Adapter
Technical Information
Host Interface: PCI Express x1
Media & Performance
UASP Support: Yes
Interfaces/Ports
Total Number of USB Ports: 2
Number of USB 3.2 Ports: 2
Number of SATA Ports: 1
Software
Operating System Supported:

• Windows Vista
• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2016
• Windows Server 2019
• Linux

Physical Characteristics
Product Color: Green
Form Factor: Plug-in Card
Height: 119.4 mm
Width: 17.8 mm
Length: 66 mm
Weight (Approximate): 40 g
Miscellaneous
Package Contents:

• 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power
• 1 x Low Profile Bracket
• 1 x Driver CD
• 1 x Instruction Manual

Platform Supported:

• PC
• Linux

Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
