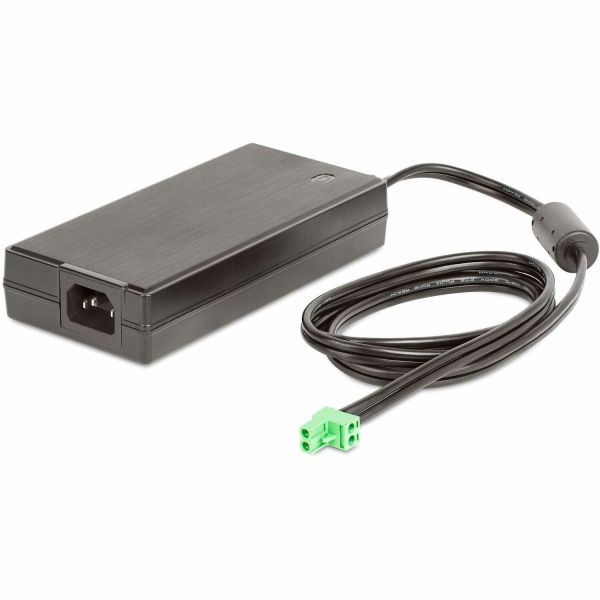

StarTech.com 160W Universal DC Power Adapter (24V/6.6A), External AC/DC Power Supply for USB Hubs, 2/3-Pin Terminal Blocks, International

Marketing Information

Power a StarTech.com Industrial USB Hub, or other device with a 2-or-3-wire terminal block DC input, using this 24V Universal Power Adapter.

High-Performance Universal Power Adapter

The Power Adapter features an auto-switching 100-240V AC input with a 24V/6.6A (158.4W) DC output and attached 4ft (1.2m) DC cord.

Four 4ft (1.2m) regional power cables are included, to ensure international support:

• North America - Type-A NEMA 1-15
• United Kingdom - Type-G BS 1363
• Europe - CEE 7/7
• Australia/New Zealand - Type-I AS 3112

Device Compatibility

The Power Adapter features two bare-wire leads with both 2-conductor and 3-conductor terminal block connectors inclu...ded, for seamless integration with a variety of devices. This power supply can be used as an accessory and primary power source for many StarTech.com Industrial USB Hubs, such as:

• 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
• 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
• 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
• 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
• 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)

This power adapter can also be used to replace a lost or broken power adapter, or can be kept as a redundant back-up power brick for mission critical applications for StarTech.com Industrial USB Hubs that include a power adapter, such as:

• 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
• 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
• 4-Port Industrial USB 5Gbps Hub (ST4300USBM)

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 160WPOWERADAPTER
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: AC Adapter
Packaged Quantity: 1
Product Type: AC Adapter
Technical Information
Device Supported: USB Hub
Universal Adapter: Yes
Cable Length: 1.22 m
Cables Included Detail: 4ft [1.2m] Power Cords (NA/JP, EU, UK, ANZ)
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range: 100 V AC - 240 V AC
Output Voltage: 24 V DC
Maximum Output Power: 160 W
Maximum Input Current: 3.50 A
Maximum Output Current: 6.60 A
Physical Characteristics
Color Family: Black
Product Color: Black
Material Family: Plastic
Height: 38.1 mm
Width: 53.3 mm
Weight (Approximate): 292 g
Environmental Conditions
Minimum Operating Temperature: 5°C
Maximum Operating Temperature: 55°C
Minimum Storage Temperature: -20°C
Maximum Storage Temperature: 80°C
Miscellaneous
Package Contents:

• AC Adapter
• 4 x 4ft [1.2m] Power Cords (NA/JP, EU, UK, ANZ)
• 1 x Two Conductor Terminal Block Connector (Attached)
• 1 x Three Conductor Terminal Block Connector
• 1 x Quick-Start Guide

Compatibility:

StarTech Products:

• 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
• 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
• 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
• 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
• 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)
• 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
• 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
• 4-Port Industrial USB 5Gbps Hub (ST4300USBM)

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
