StarTech.com 10Gigabit Ethernet Card for Server - 10GBase-X, 10GBase-T, 10GBase-CR, 10GBase-SR, 10GBase-LR, 1000Base-T, 1000Base-SX, 1000Base-LX - SFP+ - Plug-in Card - Black

Marketing Information

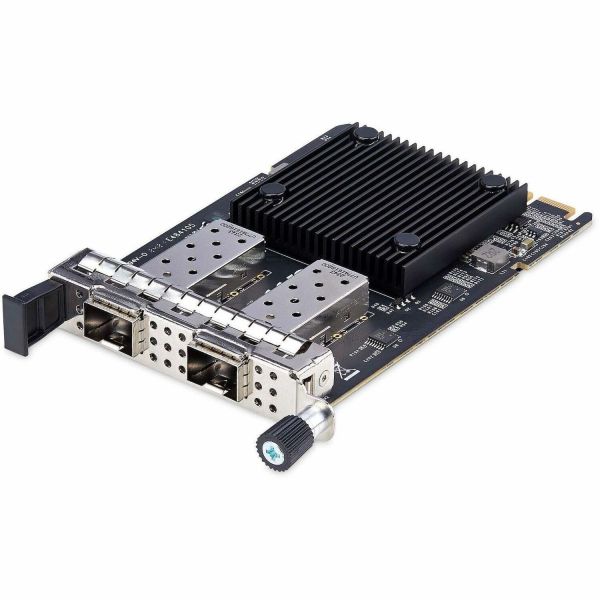

The 2-port 10Gbps OCP network interface card with the Intel X710-BM2 controller adds two open SFP+ slots to a server, increasing connectivity options and network performance.

OCP (Open Compute Project) Interface

The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.

10GbE and 1GbE SFP Support

This card supports 1000Base-T/SX/LX/EX and 10GBase-T/SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-laten...cy connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.

Advanced Features

Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: O1210I-NETWORK-CARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 10Gigabit Ethernet Card
Packaged Quantity: 1
Product Type: 10Gigabit Ethernet Card
Technical Information
Chipset Manufacturer: Intel
Chipset Model: X710-BM2
Features: PXE Support
Interfaces/Ports
Host Interface: PCI Express 3.0
I/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+
Media & Performance
Media Type Supported: Optical Fiber
Maximum Data Transfer Rate: 10 Gbit/s
Fiber Mode Supported:

• Single-mode
• Multi-mode

Network & Communication
Network Technology:

• 10GBase-X
• 10GBase-T
• 10GBase-CR
• 10GBase-SR
• 10GBase-LR
• 1000Base-T
• 1000Base-SX
• 1000Base-LX

Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Plug-in Card
Height: 15.2 mm
Width: 83.8 mm
Depth: 132.1 mm
Weight (Approximate): 104.9 g
Miscellaneous
Package Contents:

• 10Gigabit Ethernet Card
• 1 x Quick-Start Guide

Application/Usage: Network
Device Supported: Server
Operating System Compatibility:

• Windows Server 2012
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• Windows 10
• Windows 11
• Linux
• Linux 2.6.x
• Windows Server 2012 R2 Core

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
