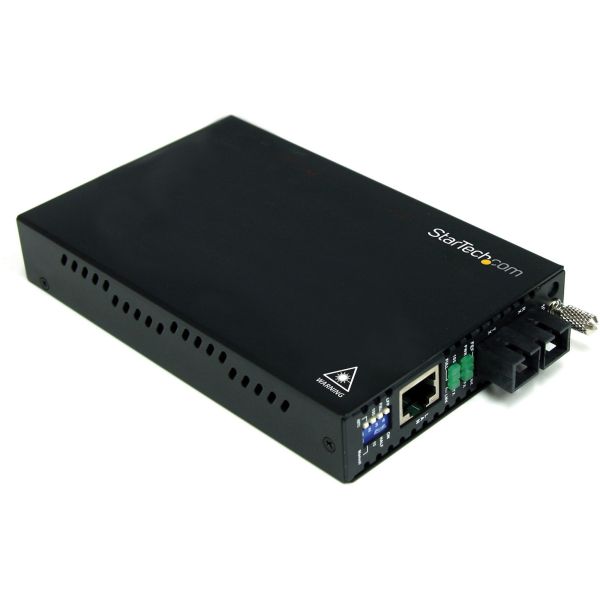

StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
Maximum Distance Supported | 30 km |
---|---|
Number of SC Ports | 1 |
Fiber Mode Supported | Single-mode |
SC Port Type | Duplex |
Product Type | Transceiver/Media Converter |
Power Source | AC Adapter |
Form Factor | Desktop/Rack-mountable |
Network Technology | 10/100Base-TX/100Base-FX |
Brand Name | StarTech.com |
Ethernet Technology | Fast Ethernet |
USB | No |
DVI | No |
Number of Network (RJ-45) Ports | 1 |
Network (RJ-45) | Yes |
Media Type Supported | Optical Fiber/Twisted Pair |
Total Number of Ports | 2 |
TAA Compliant | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Description
The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free l...ifetime technical support.
More from the Manufacturer
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ET90110SM302
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1.31 µm
Maximum Distance Supported: 30 km
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
- 10/100Base-TX
- 100Base-FX
Power Description
Power Source: AC Adapter
Input Voltage: 12 V DC
Power Consumption: 19.20 W
Plug/Connector Type: Type M
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor:
- Desktop
- Rack-mountable
Height: 22.9 mm
Width: 86.4 mm
Depth: 154.9 mm
Weight (Approximate): 391.2 g
Miscellaneous
Package Contents:
- 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
- 1 x Universal Power Adapter
- 1 x Instruction Manual
Compatibility:
ETCHS2U Rackmount Chassis
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- FC
- FCC
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes
