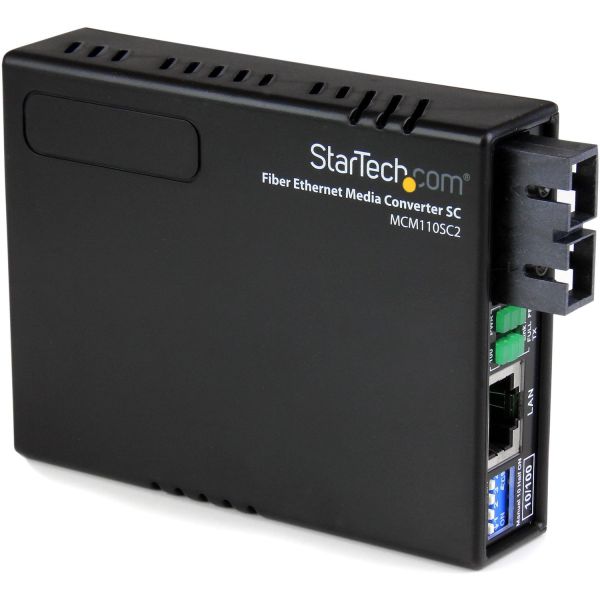

StarTech.com Ethernet to MM Fiber Media Converter

Marketing Information
The MCM110SC2GB 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile GbE Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MCM110SC2GB
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: MCM110SC2GB
Product Name: Ethernet to MM Fiber Media Converter
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 2 km
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:

• 10Base-T
• 100Base-FX
• 100Base-TX

Power Description
Power Source: AC Adapter
Power Consumption: 2.40 W
Plug/Connector Type: Type M
Physical Characteristics
Height: 20.3 mm
Width: 76.2 mm
Depth: 94 mm
Weight (Approximate): 90.7 g
Miscellaneous
Additional Information:

• liBest value fiber media converter
• Compact design makes it portable and unobtrusive to carry
• Easily installed into any scenario with little to no configurations needed
• Lightweight design can be mounted anywhere
