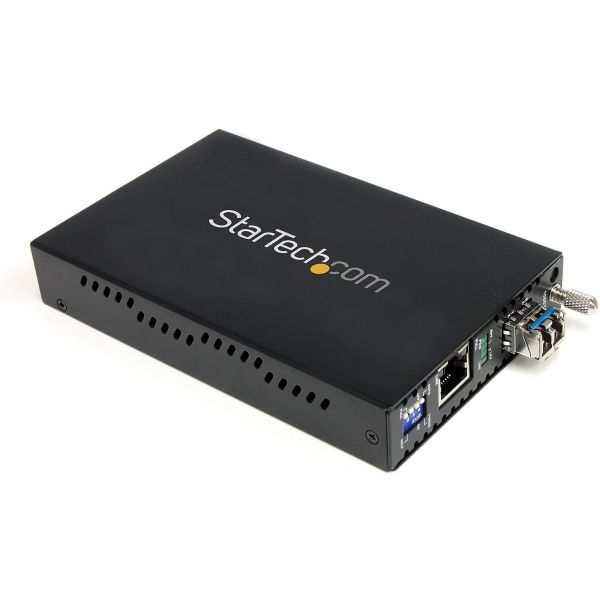

StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
Maximum Distance Supported | 40 km |
---|---|
Number of LC Ports | 1 |
Fiber Mode Supported | Single-mode |
LC Port Type | Duplex |
Product Type | Transceiver/Media Converter |
Power Source | AC Adapter |
Form Factor | Desktop/Rack-mountable |
Network Technology | 1000Base-T/1000Base-SX/LX |
Brand Name | StarTech.com |
Ethernet Technology | Gigabit Ethernet |
USB | No |
DVI | No |
Number of Network (RJ-45) Ports | 1 |
Network (RJ-45) | Yes |
Media Type Supported | Twisted Pair/Optical Fiber |
Total Number of Ports | 2 |
TAA Compliant | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Description
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operati...on, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ET1000S40LC2
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of LC Ports: 1
LC Port Type: Duplex
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1.31 µm
Maximum Distance Supported: 40 km
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-SX/LX
Power Description
Power Source: AC Adapter
Input Voltage: 12 V DC
Power Consumption: 4 W
Plug/Connector Type: Type M
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor:
- Desktop
- Rack-mountable
Height: 22.9 mm
Width: 86.4 mm
Depth: 154.9 mm
Weight (Approximate): 408.2 g
Miscellaneous
Package Contents:
- 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
- 1 x Universal Power Adapter
- 1 x Instruction Manual
Compatibility:
ETCHS2U Rackmount Chassis
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- FC
- FCC
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes
