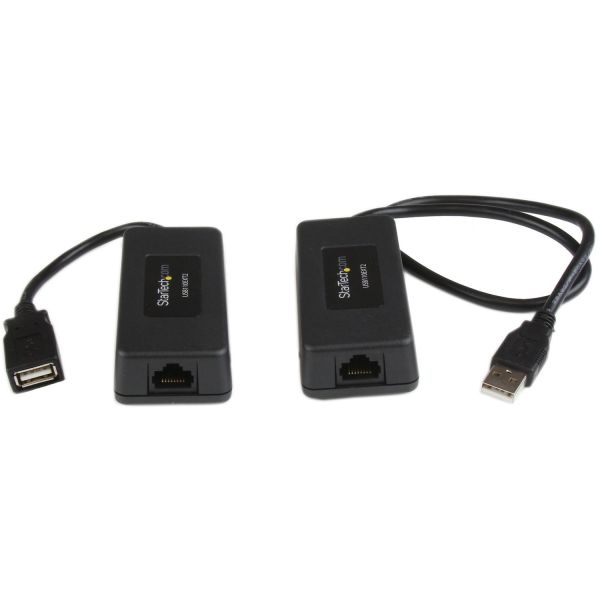

StarTech.com 1 Port USB Over Cat5 / Cat6 Ethernet Extender - Up to 131ft (40m)

Marketing Information
The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.

The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.

Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps... of data bandwidth.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: USB110EXT2
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1 Port USB Over Cat5 / Cat6 Ethernet Extender - Up to 131ft (40m)
Packaged Quantity: 1 Each
Product Type: USB Extender
Technical Information
Maximum Extended Range: 40 m
Maximum Data Transfer Rate: 1.50 MB/s
Interfaces/Ports
USB: Yes
Number of USB Ports: 1
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Plastic
Height: 25.4 mm
Width: 40.6 mm
Length: 83.8 mm
Transmitter Weight (Approximate): 110 g
Receiver Weight (Approximate): 110 g
Miscellaneous
Package Contents:

• 1 x Local Unit
• 1 x Remote Unit
• 1 x Instruction Manual

Additional Information:

• Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options
• USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 165 feet (50 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+
• USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device
• 1x USB 1.1 port, 1x RJ45 port
• 8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection
• Integrated USB cables
• No driver or software required

Certifications & Standards:

• CE
• FCC

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
