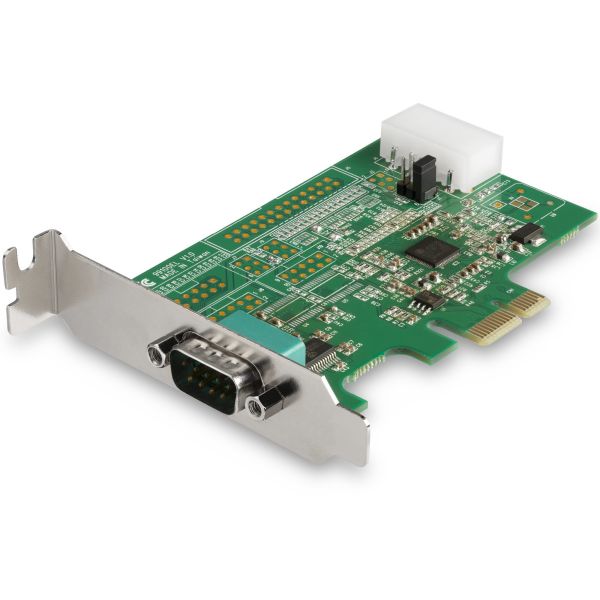

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows/Linux

£37.50
Limited Stock: Only 0 available
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows/Linux
Category: Serial|Parallel Adapters
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon
Ethics - Animal - Key Point StarTech.com's key animal record fact coming soon
Ethics - Human - Key Point StarTech.com's key human record fact coming soon
Ethics - Environment - Key Point StarTech.com's key environment record fact coming soon
Ethics - Integrity - Key Point StarTech.com's key integrity record fact coming soon
Ethics - Durability - Key Point StarTech.com's key durability record fact coming soon

Description

Marketing Information

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

  • Compatible with industry standard 16950 ...UART
  • Supports max baud rate of up-to 921.4Kbps
  • Provides 5/12V power output on Pin 9 when external power is connected
  • 128-byte depth FIFO per transmitter and receiver
  • Supports 9, 8, 7, 6, 5 data bits
  • Asix AX99100 chipset
  • PCI Express 1.1 compliant

PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer


Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX1S953LP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1-Port PCI Express Serial Card with 16950 UART - Low-Profile
Packaged Quantity: 1
Product Type: Serial Adapter
Technical Information
Host Interface: PCI Express x1
UART Type: 16950
Platform Supported:
  • PC
  • Linux

Interfaces/Ports
Number of Serial Ports (External): 1
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 149.9 mm
Width: 66 mm
Length: 99.1 mm
Weight (Approximate): 45.4 g
