StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16550 UART - Low Profile - Windows/Linux

£34.07
Limited Stock: Only 0 available
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16550 UART - Low Profile - Windows/Linux
Category: Serial|Parallel Adapters
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon
Ethics - Animal - Key Point StarTech.com's key animal record fact coming soon
Ethics - Human - Key Point StarTech.com's key human record fact coming soon
Ethics - Environment - Key Point StarTech.com's key environment record fact coming soon
Ethics - Integrity - Key Point StarTech.com's key integrity record fact coming soon
Ethics - Durability - Key Point StarTech.com's key durability record fact coming soon

Description

Marketing Information

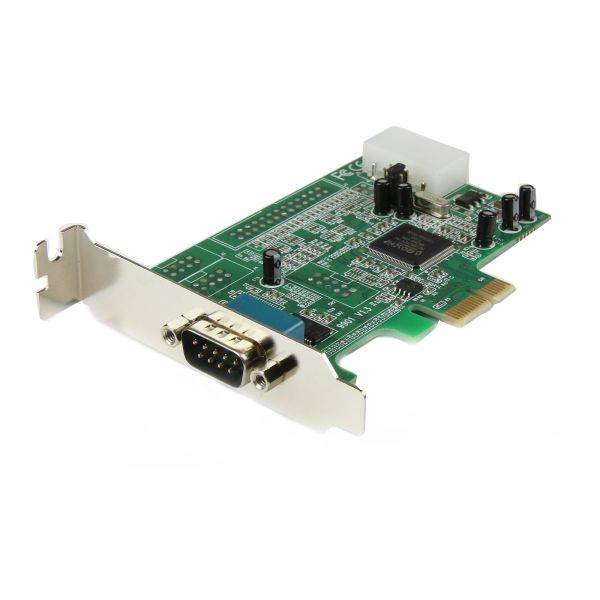

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).

This product is a replacement fo...r our PEX1S552LP card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer


Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX1S553LP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: PEX1S553LP
Product Name: 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
Product Type: Serial Adapter
Technical Information
Host Interface: PCI Express x1
Data Transfer Rate: 460kB/s
UART Type: 16550
Platform Supported:
  • PC
  • Mac
  • Linux

Interfaces/Ports
Number of Serial Ports (External): 1
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 20.3 mm
Width: 78.7 mm
Length: 104.1 mm
Weight (Approximate): 45.4 g
Miscellaneous
Package Contents:
  • 1 Port Low Profile RS232 PCI Express Serial Card
  • Full Profile Bracket

Additional Information:
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.4 and later (tested up to 10.10)
  • Linux kernel 2.6.x

    • TAA Compliant: Yes
    Warranty
    Limited Warranty: 2 Year
