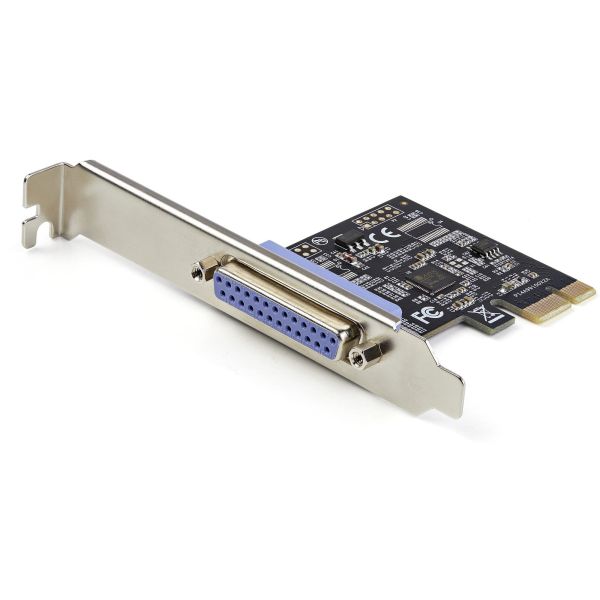

StarTech.com 1-Port Parallel PCIe Card

Marketing Information

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.

Adds a Parallel Port to Your Desktop Computer

The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.

...>Wide Installation Compatibility

This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).

PEX1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX1P2
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1-Port Parallel PCIe Card
Packaged Quantity: 1
Product Type: Parallel Adapter
Technical Information
Host Interface: PCI Express 2.0 x1
Platform Supported:

• PC
• Linux

Interfaces/Ports
Number of Parallel Ports (External): 1
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Half-height/Low-profile
Height: 17.8 mm
Width: 73.7 mm
Weight (Approximate): 45 g
Miscellaneous
Package Contents:

• 1-Port Parallel PCIe Card
• Low Profile Bracket
• Driver CD
• Instruction Manual

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
