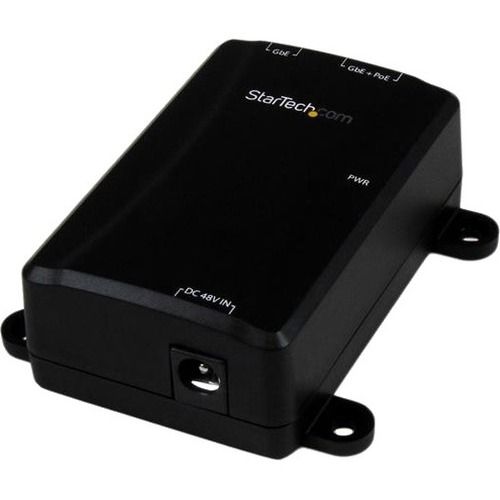

StarTech.com 1 Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable Power over Ethernet Injector Adapter

Marketing Information
Deliver power and data to your Power over Ethernet device using this mountable PoE+ midspan. This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).

The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

Convenience and cost savings

This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-pow...er PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn't available.

Easy to set up in mixed environments

You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that's perfect for installing on walls or under a desk, but it's also palm-sized, for use on desktop surfaces.

Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Intelligent power allocation

Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.

The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: POEINJ1GW
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable
Packaged Quantity: 1
Product Type: PoE Injector
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Maximum Output Voltage: 56 V DC
Maximum Input Current: 750 mA
Maximum Output Current: 640 mA
Maximum Output Power: 30 W
Interfaces/Ports
Input Ports: 1 x 10/100/1000Base-T
Output Ports: 1 x 10/100/1000Base-T
Physical Characteristics
Product Color: Black
Form Factor: Desktop
Mount Type: Wall Mountable
Height: 25.4 mm
Width: 63.5 mm
Length: 71.1 mm
Weight (Approximate): 52 g
Miscellaneous
For Country/Region:

• Europe
• North America
• United Kingdom

Package Contents:

• 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable
• 4 x Screws
• 1 x Universal Power Adapter
• 3 x Power Cords (EU/UK/AU)
• 1 x Quick-Start Guide

Compatibility: StarTech NETRS2321POE Terminal & Device Server
Certifications & Standards:

• C-Tick
• FCC
• CE
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• IEEE 802.3 (10BASE-T)
• IEEE 802.3u (100BASE-TX)
• IEEE 802.3ab (1000BASE-T)

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
