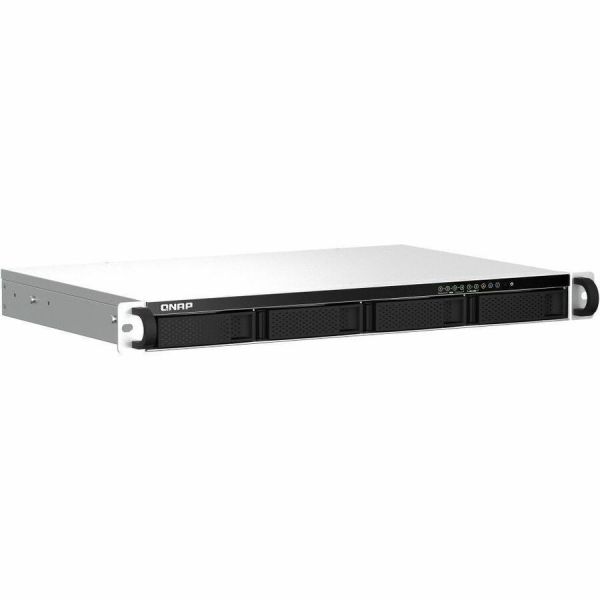

QNAP TS-464EU-8G SAN/NAS Storage System

Marketing Information

The TS-464eU is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-464eU surpasses the previous generation.

• 2.5GbE connectivityUp to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
• HDMI OutputSupports 4K media playback and real-time transcoding.
• NVMe SSD application Two M.2 PCIe NVMe SSD slots support Qtier™ auto-tiering technology and SSD caching.
• USB interfaceTwo USB 3.2 Gen 2 10Gbps ports for fast...er data transfer.
• Backup and data recoveryProtects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.
• Hybrid cloud applicationsCloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.

Quad-core Processor, burst up to 2.9 GHz

The TS-464eU is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz) with 8 GB DDR4 memory. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.

Build a High-Speed 2.5GbE Network Environment

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

• A fast 2.5GbE NASA QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
• Upgrade computers and serversServers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
• Add a 5GbE port to laptopsLaptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
• A switch that supports 2.5GbE+QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

Specifications
Manufacturer: QNAP Systems
Manufacturer Part Number: TS464EU8G
Manufacturer Website Address: http://www.qnap.com
Brand Name: QNAP
Product Model: TS-464EU-8G
Product Name: TS-464EU-8G SAN/NAS Storage System
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 4
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 4
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 4 GB
Processor & Chipset
Processor Type: Celeron
Processor Model: N5095
Processor Core: Quad-core (4 Core)
Processor Speed: 2 GHz
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 4
Number of 2.5"/3.5" Bays: 4
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, JBOD
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 2 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Software
Operating System: QTS 5.0.1
Management & Protocols
Protocols:

• LDAP
• HTTPS
• L2TP
• SFTP
• DHCP
• SSH
• IPSec
• FTPS
• AFP
• FTP
• CIFS/SMB
• SNMPv2
• IPv4
• WEBDAV
• Telnet
• SSL
• iSCSI
• TLS
• HTTP
• NFS
• TFTP
• FXP
• DDNS
• IPv6
• PPTP

Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 43.3 mm
Width: 482.6 mm
Depth: 321.3 mm
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 4.35 kg
