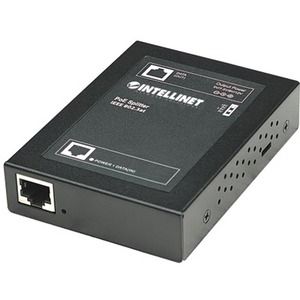

Intellinet Power over Ethernet (PoE+) Splitter

Marketing Information

Deliver Power over Ethernet to remote devices

The Intellinet Network Solutions PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available.

Simplify Installation for an Ethernet-based Device

Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** fr...om a power source. The PoE Splitter is simple to install and requires no tools or software.

802.3af Compliant Power over Ethernet

The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches.

Adjustable Power Output

During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side.

** Maximum distance per 802.3u specifications.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 560443
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Model: 560443
Product Name: Power over Ethernet (PoE+) Splitter
Product Type: PoE Splitter
Power Description
Minimum Output Voltage: 5 V DC
Maximum Output Voltage: 12 V DC
Maximum Output Current: 4 A
Maximum Output Power: 25.40 W
Interfaces/Ports
Input Ports: 1 x 10/100Base-TX
Output Ports: 1 x 10/100Base-TX
Physical Characteristics
Product Color: Black
Height: 22 mm
Width: 74 mm
Length: 102 mm
Weight (Approximate): 240 g
Miscellaneous
Package Contents:

• 560443 Power over Ethernet Splitter
• Power Output Cable
• User Manual

Certifications & Standards:

• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• FCC Class A
• CE

Warranty
Limited Warranty: 3 Year
