Intellinet PoE+ Injector

Marketing Information

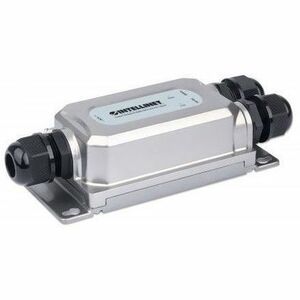

Outdoor Gigabit PoE+ Injector - 30 W for an IEEE 802.3at Powered Device

The Intellinet Network Solutions Outdoor Vandalproof Gigabit High-Power PoE+ Injector lets you connect your IEEE 802.3af/at-compliant wireless access point, IP phone, network camera and more to a non-PoE LAN switch port so it can supply both a power and a network connection up to 100 meters (328 ft.) away. This injector has an output power rating up to 30 watts, which is enough for many power-hungry PoE devices.

Hardened design for outdoor and industrial use

This PoE+ injector is the right power and data connector for its suitability to a wide variety of environments. Its weatherproof IP67 (waterproof and dustpro...of) rating, vast operating temperature range of -40 - 75°C (-4 - 140°F) and vandal-proof IK10 score make this Power over Ethernet injector able to withstand harsh conditions and industrial environments. Beyond that, it has ratings for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6).

Reduced wiring costs

There's no need to run AC power lines to get your PD set up and working. Once you've quickly wired DC power to the Injector through its two-pin terminal block, simply connect this PoE+ Injector to the LAN switch port, and use the existing Cat5/6/6a cabling to deliver DC power as well as transfer data at 10/100/1000 Mbps speeds up to 100 m (328 ft.) away.

Safe protection for your expensive network equipment

The auto-sensing technology of this high-power PoE Injector ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages. Port surge protection up to 6 kV and ESD protection up to 8 kV make its safety complete.

Wall-mount option

For full installation flexibility indoors or outdoors, you can mount the injector on the wall through its four built-in holes. The required mounting kit comes included in the package.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 561778
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Name: PoE+ Injector
Product Type: PoE+ Injector
Technical Information
Protection Type:

• Short Circuit
• Over Voltage
• Surge Protection
• ESD Protection

Power Description
Input Voltage: 56 V DC
Maximum Output Voltage: 55 V DC
Maximum Input Current: 1.50 A
Maximum Output Current: 600 mA
Maximum Output Power: 30 W
Interfaces/Ports
Input Ports:

• 1 x Terminal Block
• 1 x Gigabit Ethernet

Output Ports: 1 x Gigabit Ethernet
Physical Characteristics
Form Factor: Wall Mountable
Height: 150 mm
Width: 73 mm
Depth: 44 mm
Weight (Approximate): 386 g
Miscellaneous
Package Contents:

• PoE+ Injector
• Earthing Kit
• Three IP67-Rated Cable Glands
• Mounting Kit for Wall
• Instructions

Certifications & Standards:

IEEE 802.3af (Power over Ethernet)

IEEE 802.3at (High-Power PoE+ Power over Ethernet)

IEEE 802.3 (10Base-T Ethernet)

IEEE 802.3u (100Base-TX Fast Ethernet)

IEEE 802.3ab (1000BASE-T Gigabit Ethernet)

FCC Class A

CE

UKCA

NDAA

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
