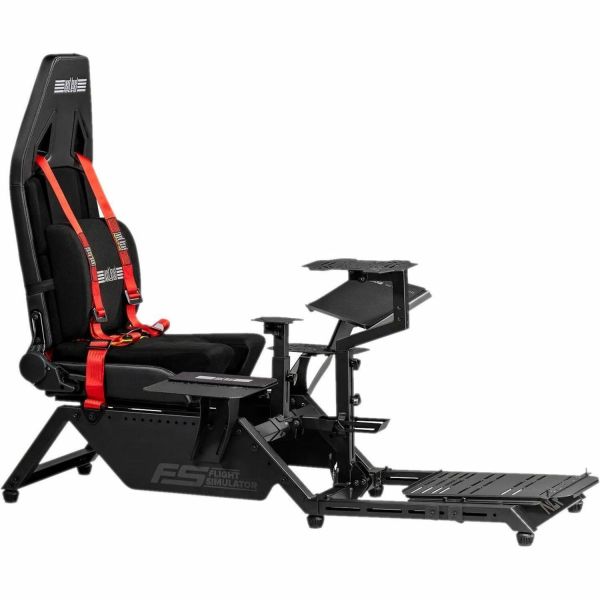

Next Level Racing Flight Simulator Frame

Marketing Information

ABOUT

Take it to the skies with the Next Level Racing® Flight Simulator, our first flight dedicated cockpit designed specifically for the aviation community. With the introduction of the Flight Simulator Cockpits, users are no longer confined to their workstation and can enjoy a true dedicated flight simulation experience. The Flight Simulator Cockpit offers a wide range of configurations to suit different classes of flight, including Combat, Space, Commercial, and General Aviation. A fully dedicated flight seat has been designed to suit different users and class of flight with a wide range of adjustments. The Flight Simulator Cockpit is compatible with a wide range of electronics such as yokes, joysticks, rudders, and thr...ottles for all major brands. With a growing ecosystem of flight accessories by Next Level Racing®, the flight community can expect a solution that is suited for training and recreational use. Official products of The Boeing Company, the Flight Simulator Cockpit comes in fully branded Military Boeing edition and Commercial Boeing Edition.

DESIGNED SPECIFICALLY FOR FLIGHT

The Next Level Racing Flight Simulator cockpit has been specifically designed and developed with flight users in mind. The Flight Simulator is the first flight cockpit that allows different flight configurations all in one station. With different components included with the Flight Simulator, the flight user can create a commercial flight configuration by attaching a wide range of yokes, rudders, and throttles directly to the cockpit. A military configuration is possible with a unique cut-out design of the seat to attach the Hotas center stick directly to the middle plate, providing a true-to-life combat experience. For general aviation, several adaptor plates are provided to ensure cross compatibility of electronics on the market to be attached directly to the cockpit. Space users can utilize the included Keyboard and Mouse tray to attach the two joysticks and have their keyboard and mouse within reach for the most reactive gaming experience. Based on the user's flight configuration, the Keyboard Support mounting location can be directly attached to the cockpit in multiple locations.

WIDE RANGE OF ADJUSTMENTS

Built to suit different users, the Flight Simulator boast a wide range of adjustments. In different categories of flight, the Flight Simulator cockpit provides adjustability in different components like the side arms with lateral adjustment of 300mm, and height adjustment of 75mm to get the perfect flight ergonomics for the user. The Centre Pole of the flight simulator offers a 150mm height adjustment for the position of the Yoke or the keyboard tray accessory. For Military and helicopter users, the Hotas center pole allows a 30mm range of height adjustment to ensure the right positioning for different size users. Several components like the flight arm, and rudder plate offer a maximum of 21.5 degrees angle adjustment to also tune in the user's preferred positioning. The Flight Simulator cockpit's seat comes with an attached seat slider and reclining backrest for quick distance and angle adjustments to cater to different size users.

Specifications
Manufacturer: Next Level Racing
Manufacturer Part Number: NLRS018
Manufacturer Website Address: http://www.nextlevelracing.com
Brand Name: Next Level Racing
Product Name: Flight Simulator Frame
Product Type: Simulation Cockpit
Technical Information
Maximum Weight Capacity: 150 kg
Features:

• Ergonomic
• Seat Slider
• Reclined
• Backrest
• Adjustable Seat Height

Minimum Recommended User Height: 1200 mm
Maximum Recommended User Height: 210 mm
Maximum Recommended User Weight: 150 kg
Physical Characteristics
Product Material:

• PU Leather
• Foam
• Steel

Seat Material: High Density Foam (HDF)
Height: 1220 mm
Width: 990 mm
Weight (Approximate): 49.50 kg
Miscellaneous
Package Contents:

• Flight Simulator Frame
• Dedicated Flight Seat
• 4 x Point Next Level Racing® Harness
• Custom Feet
• Buttkicker Adaptor Mount
• Seat Sliders
• Custom Keyboard and Mouse Pads
• Lumbar Cushion
• Hardware for assembly with extra hardware for hard mounting peripherals
• Digital assembly instructions

Device Included:

• Keyboard
• Mouse

Application/Usage:

• Commercial
• Gaming
