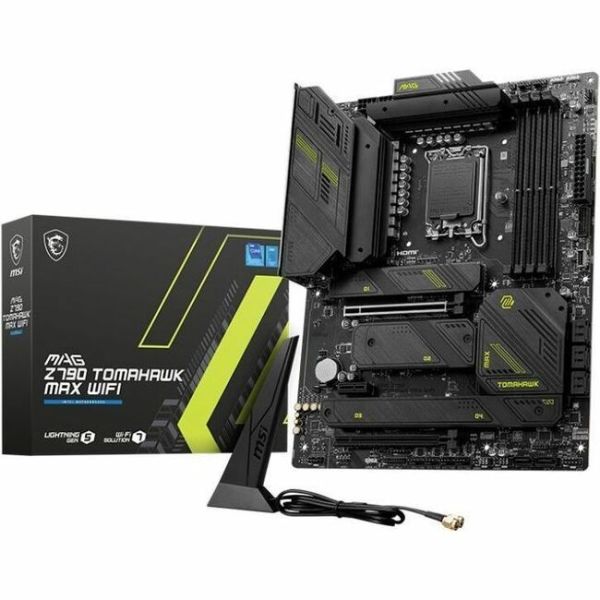

MSI MAG Z790 TOMAHAWK MAX WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX

Marketing Information

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

TOOL-FREE M.2 INSTALLATION

Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.

Extended Heatsink

• Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

M.2 Shield Frozr

• Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink

• The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad &Additional Choke Pad

• High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MAGZ790TOMAHAWKMAXWIFI
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MAG
Product Model: Z790 TOMAHAWK MAX WIFI
Product Name: MAG Z790 TOMAHAWK MAX WIFI Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z790
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported:

• 13th Gen
• 12th Gen
• 14th Gen

Processor Supported:

• Pentium Gold
• Celeron
• Core

Memory
Number of Memory Slots: 4
Memory Form Factor:

• UDIMM
• DIMM

Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz
• 7800 MHz
• 7600 MHz
• 7400 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions
Total Number of Expansion Slots: 3.0
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0
• PCI Express 3.0

Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 10
Number of USB 3.2 Gen 1 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-C Ports: 1
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
Miscellaneous
Brand Compatibility: Intel
