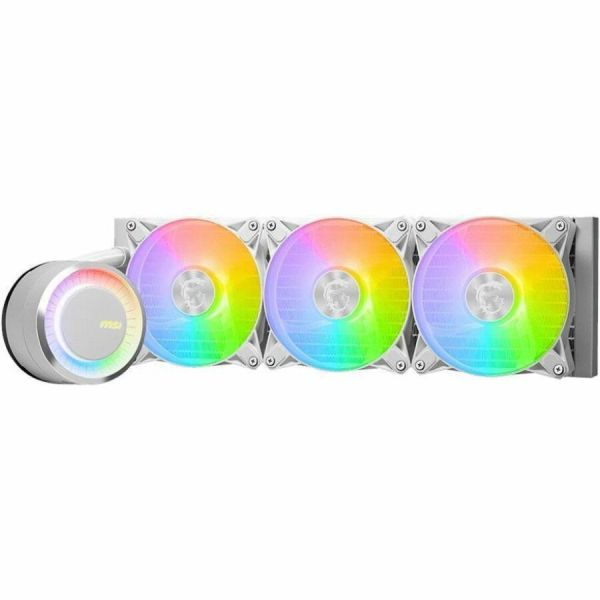

MSI MAG CORELIQUID E360 Cooling Fan/Radiator/Water Block/Pump - Processor

Marketing Information

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The MAG CORELIQUID E Series' circular shape represents the cyclical nature of time and the continuous flow of energy.

ROTATABLE BLOCKHEAD

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

ACHIEVE FULL CPU COVERAGE

By enlarging the contact area between the coolant and the copper ...base of the water block, the MAG CORELIQUID E Series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.

PUMP COOLING DESIGN

Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.

PUMP MOTOR RESONANCE ELIMINATION

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION

The radiator has a 12 pathway designed to help rapidly dissipate heat.

EVAPORATION PROOF TUBING

The multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh.

FAN CONSTRUCTION

The fan's FDB bearing helps reduce noise level while minimizing vibrations.

The fan blades are constructed of low impurity acrylic for better ARGB lighting presentation.

INTEGRATING WITH THE SYSTEM ENVIRONMENT

With the MSI CENTER software, users can integrate MSI liquid cooling with MSI motherboard and adjust the speed of the cooling fan and pump through the motherboard. The MSI CENTER provides users with easy-to-use controls to fine-tune their hardware and achieve optimal computer performance.

GLOW YOUR PC

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

Specifications
Manufacturer: MSI
Manufacturer Part Number: MAGCORELIQUIDE360
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Line: MAG CORELIQUID
Product Model: E360
Product Name: MAG CORELIQUID E360 Cooling Fan/Radiator/Water Block/Pump
Product Type: Cooling Fan/Radiator/Water Block/Pump
Fan Information
Number of Fans: 3
Fan Bearing Type: Fluid Dynamic Bearing
Minimum Airflow: 722.1 L/min
Maximum Airflow: 2124.9 L/min
Fan Life: 5.7 Year
LED Color: ARGB
Heatsink Information
Cooler Type: Liquid Cooler
Compatible Intel Socket:

• H3 LGA-1150
• H4 LGA-1151
• H2 LGA-1155
• H LGA-1156
• LGA-1200
• LGA-1700

Compatible AMD Socket:

• AM5
• AM4
• TR4
• sTRX4

Interfaces/Ports
Connectors: 4-Pin
Power Description
Maximum Power Consumption: 3 W
Rated Current: 250 mA
Physical Characteristics
Color Family: White
Product Color: White
Radiator Material: Aluminium
Material Details:

• WATER COOLING TUBE MATERIAL: Black Rubber
• COLD PLATE MATERIAL: Copper

Maximum Fan Diameter: 120 mm
Radiator Height: 27 mm
Radiator Width: 394 mm
Radiator Depth: 119.20 mm
Fan Height: 25 mm
Fan Width: 120 mm
Fan Depth: 120 mm
Miscellaneous
Features: Dissipates the Heat
Application/Usage:

• Processor
• CPU
• Motherboard
• PC
