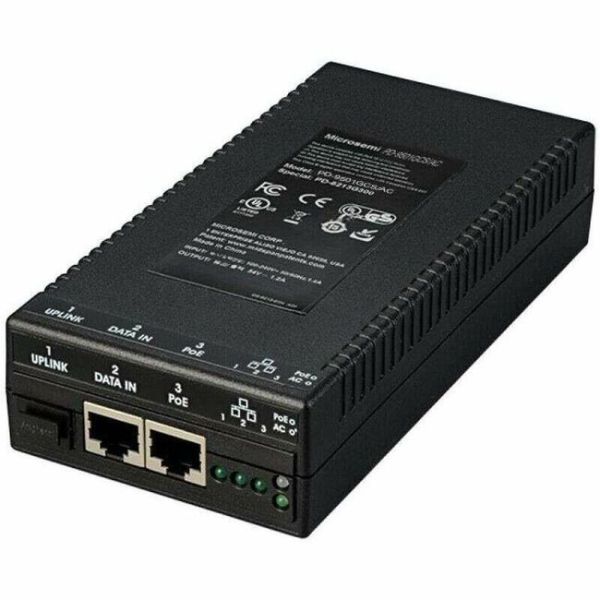

Microchip PD-9501GCS IEEE 802.3bt Type 3 PoE Media Converter With 60W of PoE Output

Marketing Information

Summary

Our PD-9501GCS is a media converter with PoE functionality that can power up to 60W. It contains three ports that can be active simultaneously and you can input data via an SFP module or RJ45 port.

This media converter offers a unique solution to power long-range installations that receive data input through fiber. You can use standard SFP modules (SM or MM) with this device.

The PD-9501GCS supports IEEE 802.3bt type 3 end devices and provides PoE after detection. The PoE port provides the power level required by the end device to offer a safe solution for all types of applications including IEE 802.3af-compliant loads and up to four pairs of IEEE 802.3btcompliant loads.

Specifications
Manufacturer: Microchip Technology Inc.
Manufacturer Part Number: PD9501GCSACEU
Manufacturer Website Address: http://www.microchip.com
Brand Name: Microchip
Product Model: PD-9501GCS/AC
Product Name: PD-9501GCS IEEE 802.3bt Type 3 PoE Media Converter With 60W of PoE Output
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
Number of PoE (RJ-45) Ports: 1
PoE Port Type: PSE
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Maximum Data Transfer Rate: 1000 Mbit/s
I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

Power Description
Power Source: AC
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
Height: 36 mm
Width: 80 mm
Depth: 160 mm
Weight (Approximate): 580 g
Miscellaneous
Package Contents:

• PD-9501GCS IEEE 802.3bt Type 3 PoE Media Converter With 60W of PoE Output
• European Union Power Cord

Application/Usage: Network
Certifications & Standards:

• IEEE 802.3bt/at/af
• FCC Part 15
• Class B
• EN 55032 Class B
• EN55035
• VCCI
• UL/IEC/EN 62368-1

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
